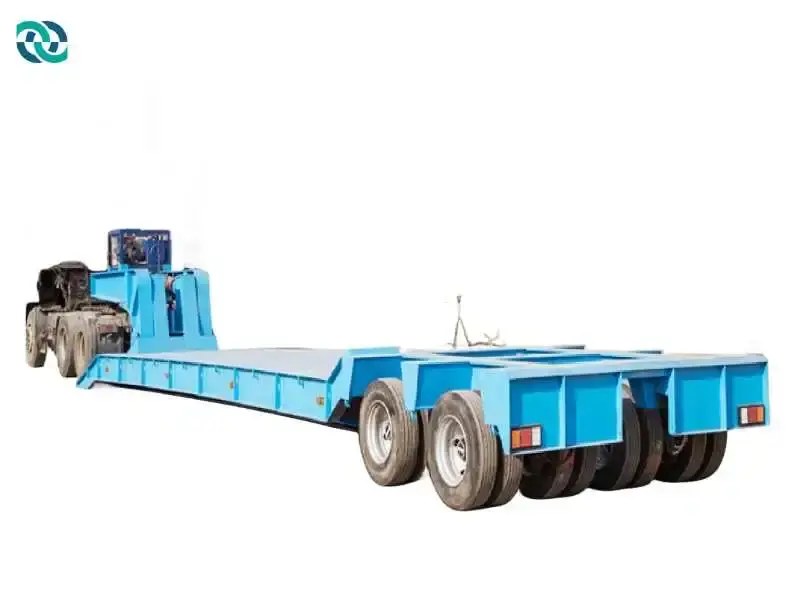

Detachable hydraulic low flat semi trailer
Product Description：
The detachable hydraulic plate semi-trailer is a flexible means of transport, and its main feature is that it has a detachable gooseneck part, which can easily drive the mechanical equipment from the front end of the trailer to the work plate to complete the loading.
Specifically, the inside of the gooseneck of this semi-trailer is usually configured with four hydraulic tops, which are located on the inside sides of the gooseneck, two hydraulic tops on the longitudinal beam and two hydraulic tops on the beam. By operating the hydraulic device, the hydraulic device of the longitudinal beam can be lifted up and down to achieve the lifting of the work plate, while the hydraulic device of the beam can be moved back and forth to achieve the separation of the gooseneck and the work plate.
This semi-trailer has great convenience in loading and transporting machinery and equipment, and can quickly realize the separation and docking of the gooseneck and the bearing platform, so that the loading of machinery and equipment is more convenient, fast and efficient.
Parameter:
| Dimension(Lx W x H)（mm） | 13600*3000*1750 |
Curb Weight(KG) | 11500 |
| Loading Weight( KG) | 50000 |
Total Wheight(KG) | 61500 |
| Departure Angle | 12 |
| Axle Brand | 13TON Axle |
| Axle Number | 2/3/4 |
7580+1310 | |
Mechanical suspension | |
Steel Spring | 10/10 |
Frame | The height of the beam is500mm,upper plate is 20mm,down plate is 20mm,middle plate is 12mm.according to the buyer’s requirement |
Platform plate | 4mm Diamond Plate |
Tire Type and quantity | 1100R20 8units |
Traction Pin | 50mm or 90mm |
Spare Wheel Bracket | 2 picecs |
Tool Box | 1 Unit |
Brake system | Dual Line braking system ,none ABS. |
Brake air chamber | 4 air chambers |
Electrical system | Tail lamp with turn signal, brake light & reflector, side lamp etc. |
24V,7 Pole plug | |
One set 6-core standard Cable. | |
Side Guard | None |
Painting | Color by customer’s requirement |
Packing | Polish with wax before shipping |
Delivery way | Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume. |
Customized & OEM | customer service |
