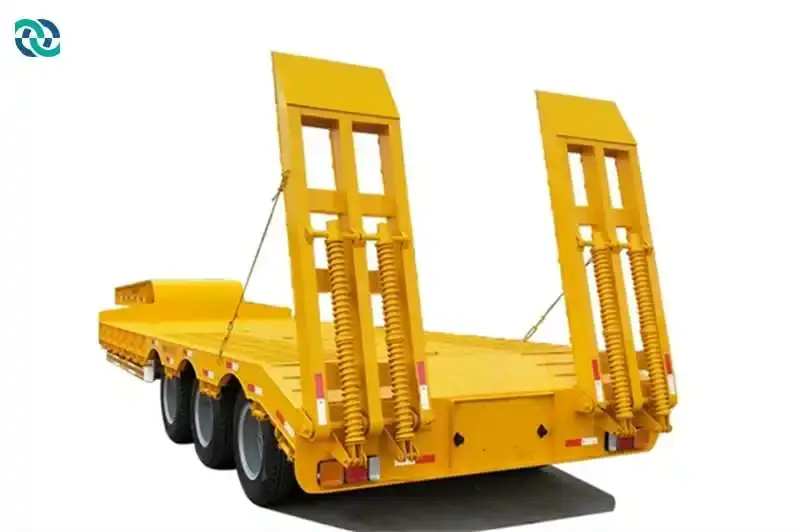

3 Axles Transport Low Flat Bed Semi Trailer
Product Parameters:
State | Shandong |
Material | Q235/T700 |
Mode of transport | By land or sea |
Customs Code | 87163990 |
Production capacity | 1000 units/year |
EMO/ Customisation | Customised to your needs |
The low bed semitrailer series is available in flat, concave beam and exposed tire construction, straight or gooseneck. Its frame is ladder type, the longitudinal beam segment is high-density, with high stiffness and high strength characteristics.
The low main plane of the vehicle frame platform ensures the smoothness of transportation and is suitable for the transportation of various construction machinery, large equipment and steel.
Parameter:
Product Name | Low Bed semi-trailer |
Size | 13000x2550x2700mm (Optional) |
Tire size | 12 r22. 5/11 r22. 5/13 r22. 5/11.00 R20/12.00 R20 (specificationcan be Optional) |
Axis | 13T/16T, Fuhua/Business College/Yahua/Hongyuan brand or optional brand |
Hover | Mechanical suspension (German or American) or air suspension |
Payload | 30T-80T |
| Support leg | Yost/Fuhua/Yahua brand or Chinese brand 28 tons (two speed or single speed |
| Main beam | Height:450 mm to 520 mm, upper plate thickness is 14 mm to 25 mm, middle plate thickness is 8 mm to 12 mm, lower plate thickness is 16 mm to 25 mm; Material is Q345 manganese steel. |
| Usage | Bulk cargo/container transport |
| Braking system | Dual line air brakes with 30 chambers for the front two axles and 30/30 chambers for the rear axles |
| Twist lock | Four, eight or twelve (lifting or twisting screw) optional locks for containers |
| Electrical system | 24V, 7-pin socket, a set of 7-core standard cables |
