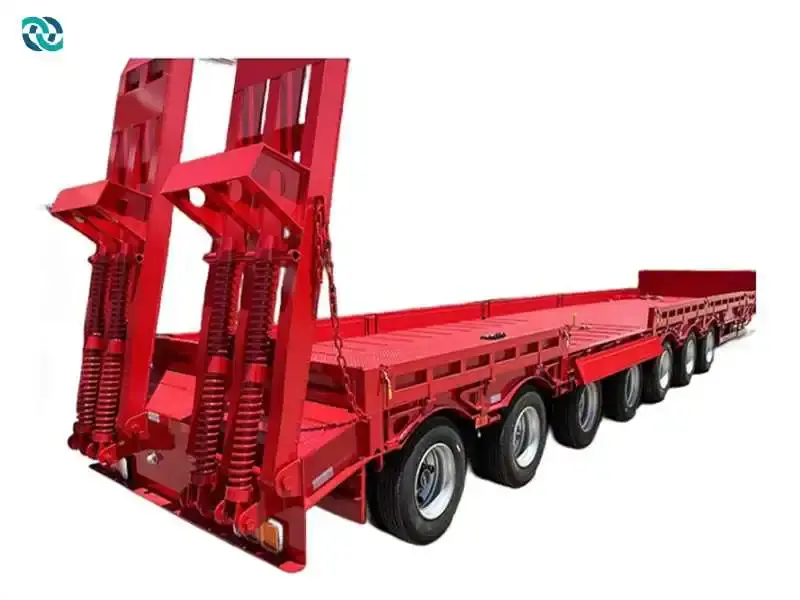

7 Axles Swan Neck Low Flat Semi Trailer 1
7 Axles Swan Neck Low Flat Semi Trailer 2
7 Axles Swan Neck Low Flat Semi Trailer 3
7 Axles Swan Neck Low Flat Semi Trailer 4
7 Axles Swan Neck Low Flat Semi Trailer 5
7 Axles Swan Neck Low Flat Semi Trailer 1
7 Axles Swan Neck Low Flat Semi Trailer 2
7 Axles Swan Neck Low Flat Semi Trailer 3
7 Axles Swan Neck Low Flat Semi Trailer 4
7 Axles Swan Neck Low Flat Semi Trailer 5

7 Axles Swan Neck Low Flat Semi Trailer

Our low-bed semi-trailers are well-designed, full of performance and features, and come in a variety of models and styles, you can email us for the latest price and information.

    oops...!

    no product data.

    Go to homepage
    Low flat bed trailer

    Product Description:

    The characteristics of the seven-axis semi-trailer are mainly reflected in its structure. It is composed of three parts: connecting head, body and carriage, of which the most important is the carriage part. The seven-axle semi-trailer is equipped with seven axles at the bottom of the compartment, each axle is equipped with tires, so it is able to carry more weight, and has better load-bearing capacity and stability. In addition, the carriage of the seven-axle semi-trailer also has a higher space utilization rate and a more flexible loading method, which can adapt to different transportation needs.

    The use of seven-axis semi-trailer is also very wide. Because of its strong bearing capacity, good stability, high space utilization, it is widely used in long-distance transportation, logistics distribution, engineering construction and other fields. For example, in long-distance transportation, seven-axis semi-trailers can be used to transport heavy goods such as large machinery and equipment and construction materials; In logistics distribution, it can be used to transport large household appliances, food and other items; In engineering construction, it can be used to transport building materials, steel and other raw materials.

     Swan neck low bed semi trailer

    Parameter:

    erms

    Low bed semi trailer 100T

    Low bed semi trailer 120T

    Loading Capacity

    80-100 tons

    100-120 tons

    Axle

    6 pieces, 13T FUWA/BPW axle

    8pieces, 13T FUWA/BPW axle

    Tyre

    24 pieces, 10.00R20

     32pieces, 11.00R20

    Dimensions(LxWxH)

    13000 -17000mm x 3000 x 1750mm

    Tare weight

    10 tons to 12 tons

    Axle spacing

    1310mm

    Rims

    8.5-20, 9.0-20

    Suspension System

    Leaf spring suspension / air suspension

    Brake System

    Dual line pneumatic brake system with WABCO emergency relay valve

    Main Beam

    Height 500mm Q345 carbon steel

    Chassis

    upper 20mm, lower 20mm. Mid web 12mm

    Rear Loading Ramps

    2 nos, 720 mm width, spring loaded & manually operated with safety chain

    Kingpin

    2' or 3.5' interchangeable,JOST brand

    Landing Gear

    28 Tons , Two speed manual operation

    Electrical System

    1.Voltage: 24v  2. Receptacle: 7 ways (7 wire harness) German standard

    Lights and Reflectors

    Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

    Painting

    Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available

    Tool Box

    One tool box with a set of standard trailer tools

    Spare Tyre Carrier

    One piece or two pieces

    7 axle low bed trailer
