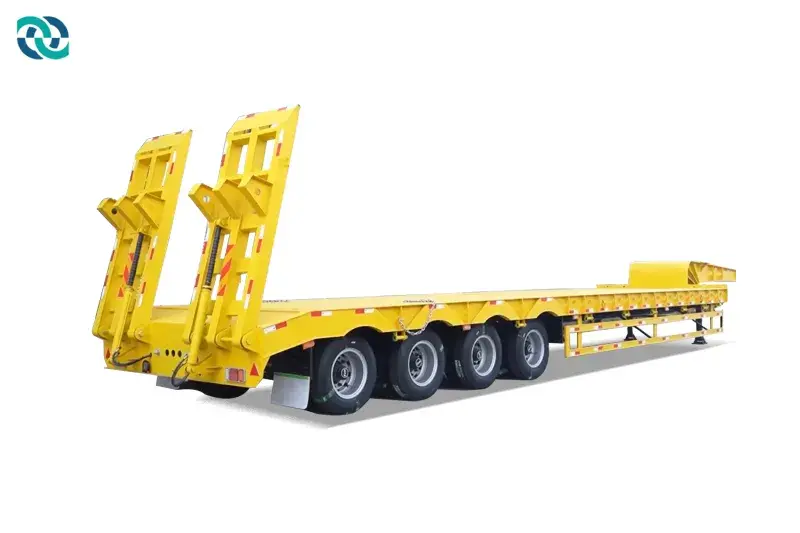

4 Axles 100T Low Bed Semi Trailer
Product Parameters:
The low platform height of the low plate semi-trailer makes loading and unloading of goods more convenient and fast, without additional unloading equipment, and improves the loading and unloading efficiency. It has a large carrying capacity and cargo space, suitable for the transport of various types and sizes of goods, such as large machinery and equipment, engineering vehicles, steel and so on. In addition, the stable structure and strong carrying capacity of the low plate semi-trailer ensure the safe transportation of goods, while its low center of gravity and smooth driving characteristics make it more stable and reliable on highways and curved roads. In addition, the low plate semi-trailer has strong adaptability and can be adjusted and modified according to needs, increasing the flexibility and safety of transportation.
Parameter:
Trailer Model | 4 axles 80T low plate semi-trailer |
Model Number | LJT9460TDP |
Function | Transport large equipment or non-removable goods |
Overall Dimension(Lx W x H) (mm) | 16000mm*3000mm*3600mm |
Tare Weight(KG) | 11350kg |
Loading Weight( KG) | 80000kg |
Total Weight(KG) | 81350kg |
Axle Brand | 4*16TON Axle FUWA Brand |
Wheelbase(mm) | 9450+1310+1310 |
Suspension system | Mechanical Leaf Spring Suspension |
Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
Side beam | Q235 300 H side beam |
Platform plate | Base plate 5MM |
Container Twist Locker | 12pcs container lock |
Tire Type and quantity | 825R20 16units |
Rim | 7.00-20 |
Traction Pin | 50" or 90" |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Standard |
Landing Gear | 28ton single action supporting legs |
Brake system | Dual Line braking system |
Brake air chamber | 8 double air chambers |
