Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.

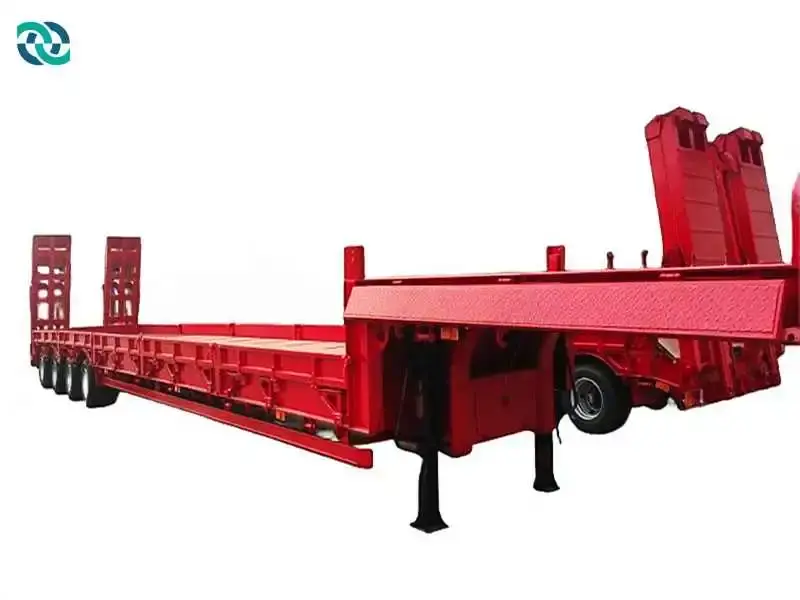

4 Axle 80 Air Suspension Liftable Low Bed Semi Trailer
Product Description：
Application of Low bed semi trailer: It is applied to the distribution of a variety of industrial equipment, large and medium-sized machinery equipment, highway construction equipment, engineering machinery equipment, large-sized storage tanks, electric power equipment machinery, various steel pipes, etc. It can design and customize the carriage surface according to customers' requirements to meet the transportation of different special commodities.
Low bed semi trailer Category:
The Low bed semi trailer has flat plate type, concave beam type and tire exposed type, and the side beam adopts vertical type and gooseneck type.
Advantage：
Strong strength and stiffness, which can well prevent the impact of goods; Can also be used as ordinary truck, hook plate semi trailer structure is simple, strong bearing gravity. Anti-distortion, anti-seismic, meet the bearing capacity of different pavement
Parameter：
erms | Low bed semi trailer 60T | Low bed semi trailer 80T |
Loading Capacity | 40-60 tons | 60-80 tons |
Axle | 4 pieces, 13T FUWA/BPW axle | 5 pieces, 13T FUWA/BPW axle |
Tyre | 16 pieces, 10.00R20 | 20 pieces, 11.00R20 |
Dimensions(LxWxH) | 13000 -17000mm x 3000 x 1750mm | |
Tare weight | 10 tons to 12 tons | |
Axle spacing | 1310mm | |
Rims | 8.5-20, 9.0-20 | |
Suspension System | Leaf spring suspension / air suspension | |
Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
Main Beam | Height 500mm Q345 carbon steel | |
Chassis | upper 20mm, lower 20mm. Mid web 12mm | |
Rear Loading Ramps | 2 nos, 720 mm width, spring loaded & manually operated with safety chain | |
Kingpin | 2' or 3.5' interchangeable,JOST brand | |
Landing Gear | 28 Tons , Two speed manual operation | |
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
Tool Box | One tool box with a set of standard trailer tools | |
Spare Tyre Carrier | One piece or two pieces | |
