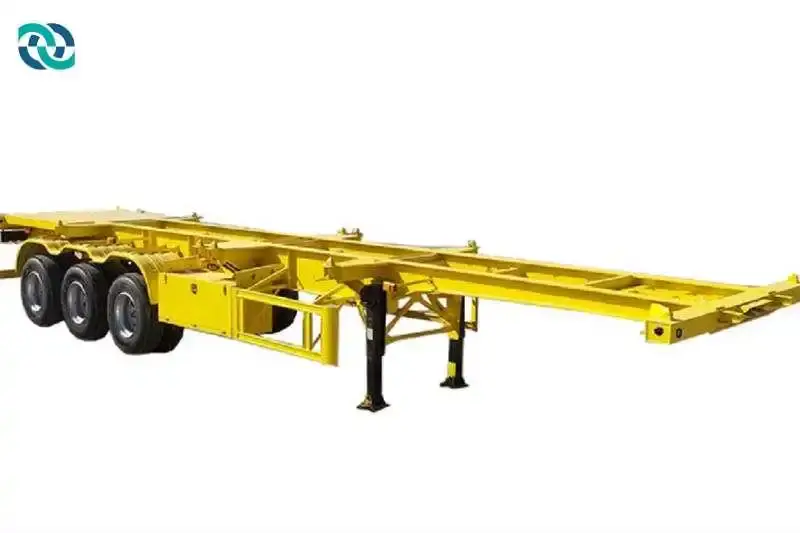

3 Axles 40F Skeleton Trailer
Product Description：
Our car equipment Moisture-proof LED lamps are equipped to prevent short circuits and ensure the safety of vehicle transportation at night.Vehicle Master's twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading.High quality tire brands such as Double Coin Triangle can be optioned for the best performance.
Advantage：
1.Adhering to the concept of uniform force on trailer frame, the 42 rib design ensures the safety and carrying capacity of our trailer.
2.Integrated advanced low-alloy axle beam with no welding points;strong capacity and high strength;
3.JOST landing gear can be optioned made in aluminum or steel;designed to work under both high and low temperature in the range of -30ºC to 120 ºC.
4.Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion.Meanwhile, Easy to disassemble and maintain.
5.Corrosion resistant and strong print adhesiveness up to 9 years. The whole body painting process makes sure no spots are missed and gives the best anti-rust performance.
6.All the connectors of electrical and gas circuits are made of copper with metal seal so there will be no rust or air leakage.
Parameter:
Specifications | |
Dimension | 12.4m×2.50m×1.55m (Outside) |
Payload | 40T |
Tare weight | About 6.5 T |
Twist lock | 12uints |
Chassis | |
Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel T700, welded by automatic Submerged-Arc processes. |
Frame Beam | Top Flange 12mm,width 140mm; Middle Flange 8mm; Bottom Flange 12mm,width 140mm, main beam height 500mm |
Frame Floor | The Thickness is 3mm pattern |
Axle | 3 axles, 13Ton 16ton brake pads |
Landing Gear | Fuwa BRAND 28T lifting capacity with two speed |
King Pin | 2 00 inch bolt-in king pin |
Suspension | Mechanical suspension reinforced type |
Leaf Spring | 90mm(W)*13mm(T)*10 Layer |
Pneumatic | Dual line pneumatic brake system,T30 air chamber ,40L x2 air tanks, Emergency relay valve |
Rim | 9.0-20*12pcs |
Tire | 12R22.5*12 pcs Triangle tire |
Accessories | One standard tool box |
Spare tire rack | One |
Electrical | 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors |
Packing and shipping | |
Painting | dusting |
Shipping Terms | By container |
