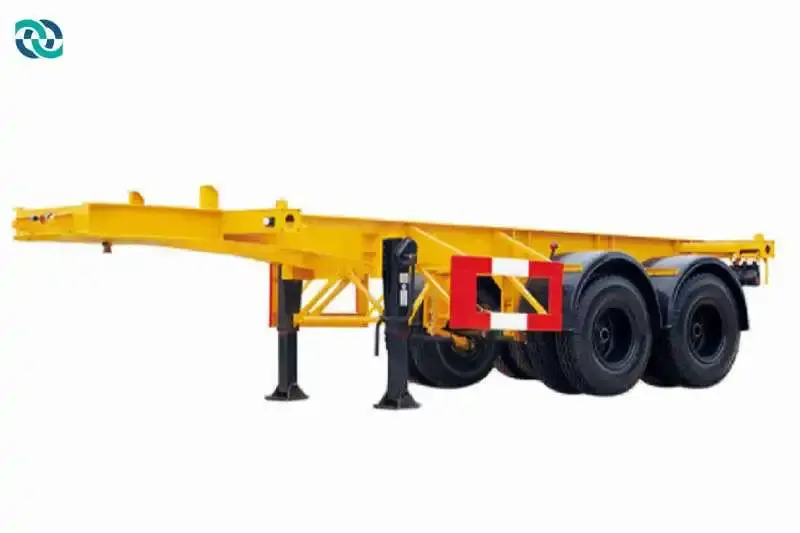

2 Axles 20FT Skeleton Semi Trailer
Product Description：
Skeleton Semi Trailer is specially used to transport containers. The skeleton is equipped with a twist lock, when the container is hoisted to the skeleton trailer, the corner holes at the bottom of the container will fall exactly to the position of the twist lock, and the container and the skeleton trailer can be locked by turning the handle of the twist lock.
The Skeleton Semi Trailer is welded by the longitudinal beam, cross beam and front and rear beams. The longitudinal beam is made of high-quality 16Mn steel plate submerged arc welded into I-shape. The cross beam is stamped into a groove with high-quality steel plate, and the front and rear end beams are welded rectangular sections. The middle container locking device is equipped with an integral long beam to improve the bearing capacity of the container locking device.
Parameter:
| Specifications | |
Dimension | 12.38m*2.48m*1.55m (Outside) |
Payload | 50T |
Tare weight | About 6.5T |
Twist lock | 4 / 8units |
Chassis | |
Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
Frame Beam | Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm |
Axle | 2 axles, 13Ton |
Landing Gear | 28T lifting capacity with two speed |
King Pin | 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension reinforced type |
Leaf Spring | 90mm(W)*13mm(T)*10 Layer |
Pneumatic | Dual line pneumatic brake system,T30 air chamber ,40L air tanks,Emergency relay valve |
Rim | 9.0-20*8 pcs |
Tire | 12R22.5*8 pcs |
Accessories | One standard tool box |
