Product Description：

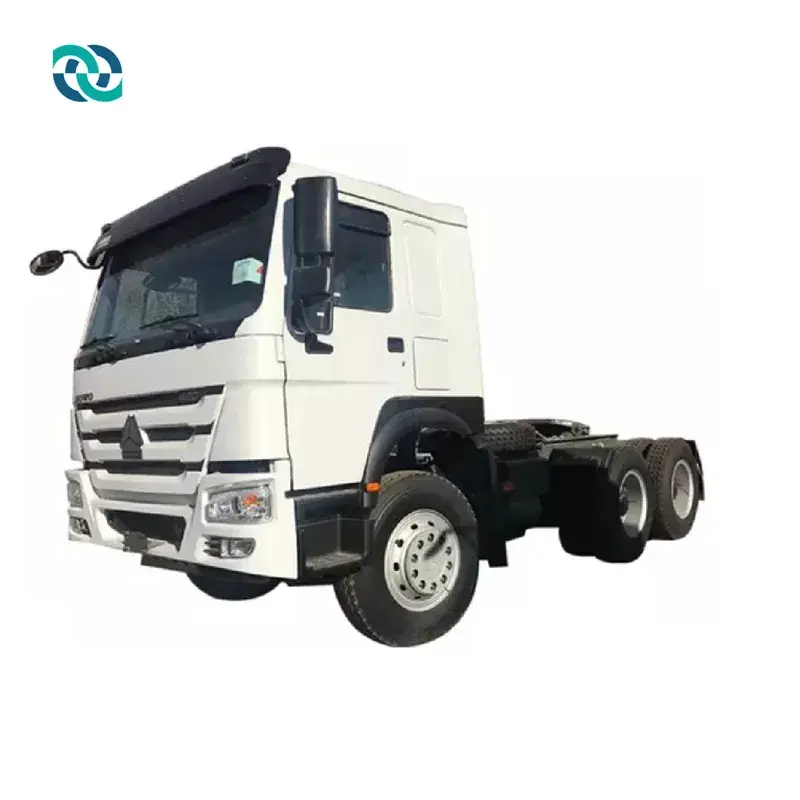

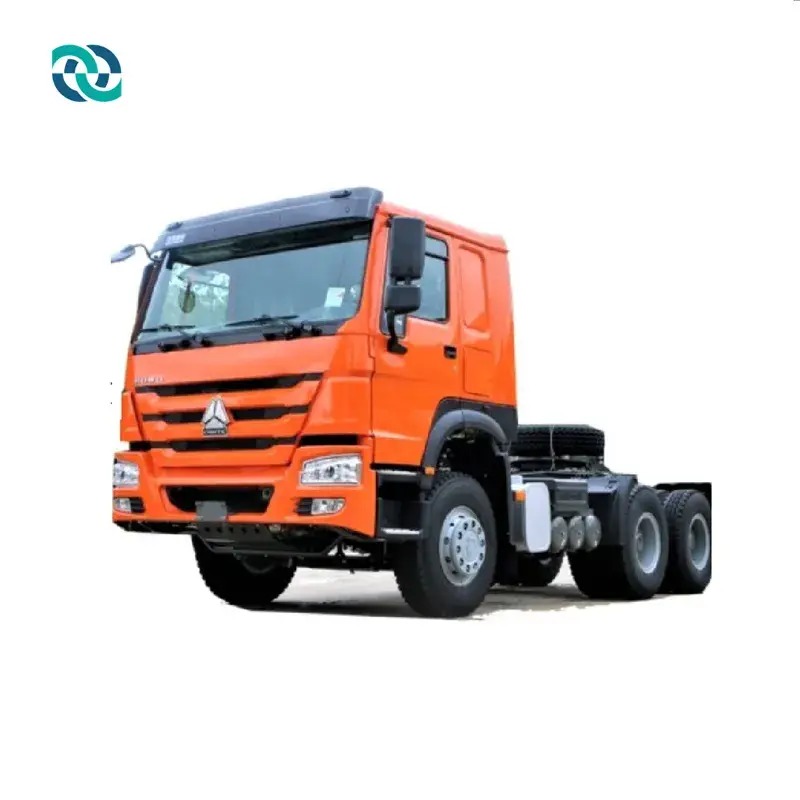

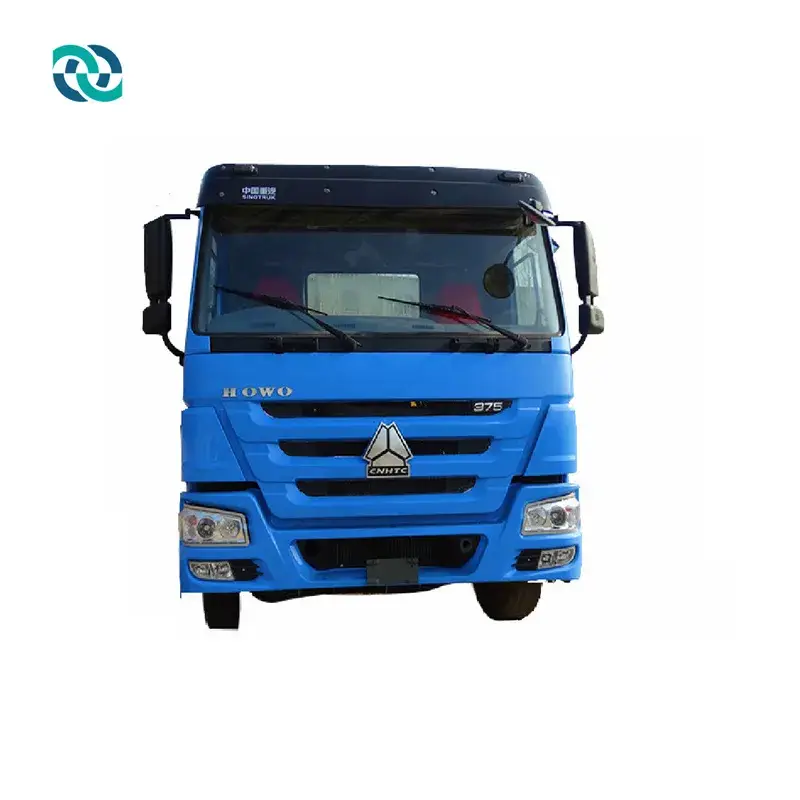

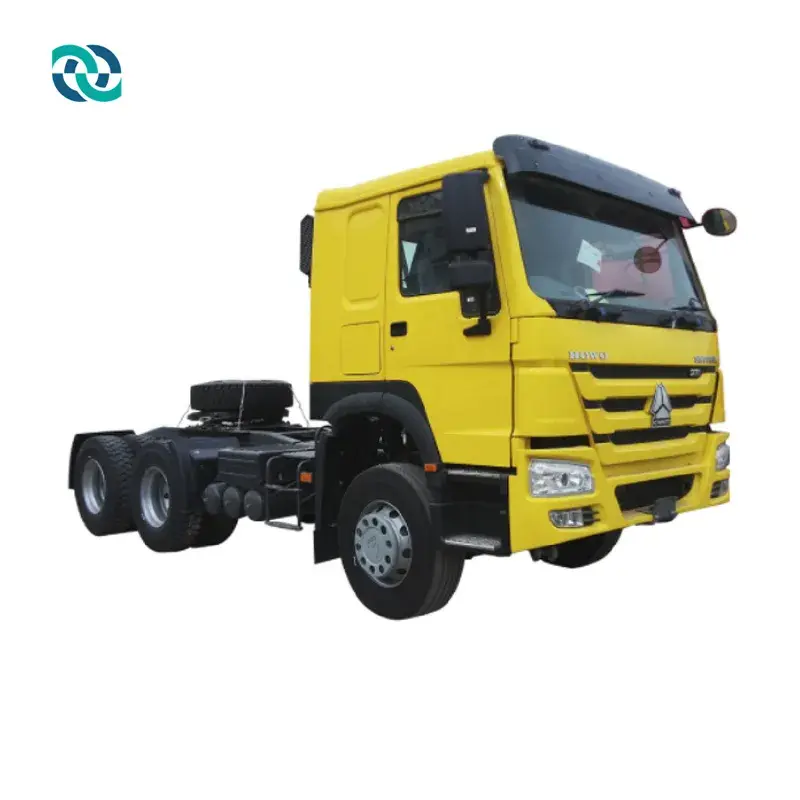

The cabin of the flat-top tractor is designed with a flat top, without a raised top like a high-top tractor, and the appearance is more concise and streamlined. Flat-top tractors are widely used in urban distribution, short-distance transportation and general cargo transportation. It is more suitable for driving under busy city streets, narrow laneways and low Bridges, and is suitable for work scenarios that require frequent loading and unloading of goods.
Advantages:
Due to the lack of a high-top design, the overall height of the flat-top tractor is lower, and it is easier to pass through low passages and areas that limit height, improving the mobility of the vehicle. Due to the smoothness of the structure, the lower center of gravity of the flat-top tractor can provide better stability, especially at high speeds and corners.
Parameter:
VEHICLE SPECIFICATION | DESCRIPTION |
Truck Model | ZZ4257V324JB1 |
Type of Vehicle | |
Truck Brand | SINOTRUK—HOWONX |
Driving Position | Right hand Driving |
Fuel tanker capacity（L） | 600 |
The Total Mass | 50,000kg |
Dead Weight | 8800 |
Max speed（km/h） | 102 |
Color | Optional |
Chassis & Add Components | |
Frame Details | High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members. |
Dimension(Lx W xH)（mm） | 6985x2496x3250 |
Approaching angle/Departure angle（°） | 16/70 |
Overhang(front/rear) (mm) | 1500/725 |
Wheel base (mm) | 3225+1350 |
Engine | |
Model | WP12.400E201 |
Power | 400hp/295kw.2000r/min |
Emission | EURO II |
Displacement(L) | 11.896 |
Type | water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
Kind of Fuel | Diesel |
Fuel Consumption(L/100km) | 25L/100km |
Clutch & Gear Box System | |
Clutch | SINOTRUKΦ430mm diaphragm spring clutch |
Gear Box | HW19710 |
Axles | |
Front Axle Model | VGD71 axle. Capacity: 7000kg |
Rear Axle | MCY13 axle. Capacity:2X 13000kg |
Ratio of rear axle | 4.8 |
Electrical System | |
Battery | 2X12V/165Ah |
Alternator | 28V-1500kw |
Starter | 7.5Kw/24V |
Brake System | |
Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels |
Auxiliary brake | Engine exhaust brake |
Steering system | |
Model | ZF8118 |
Type | hydraulic steering with power assistance |
Wheels & Tyres | |
Type | 315/80R22.5 |
Material | Vacuum tires |
Quantity | 10+1 spare |
Kin pin | 50mm JOST |
Cabin | |
Type | H77L Standard cabin |
Single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
Company Advantages
· Chenlu Trailer tipper semi trailer is provided by a team of highly experienced workers.
· This product provides incredible longevity and low-maintenance performance.
· The specifications and installations are designed to cater to the tipper semi trailer industry standard.
Company Features
· Shandong Chenlu International Trade Co., Ltd. primarily focuses on the production of tipper semi trailer. We have been considered as a strong competitor in this industry because of years of experience.
· Many products in Shandong Chenlu International Trade Co., Ltd. were authenticated by National new technology and new production.
· We will adhere to the enterprise spirit of 'striving for perfection' for the growth of Chenlu Trailer. Contact us!
Application of the Product
Various in function and wide in application, the tipper semi trailer can be used in many industries and fields.
CHENLU could customize comprehensive and efficient solutions according to customers' different needs.
