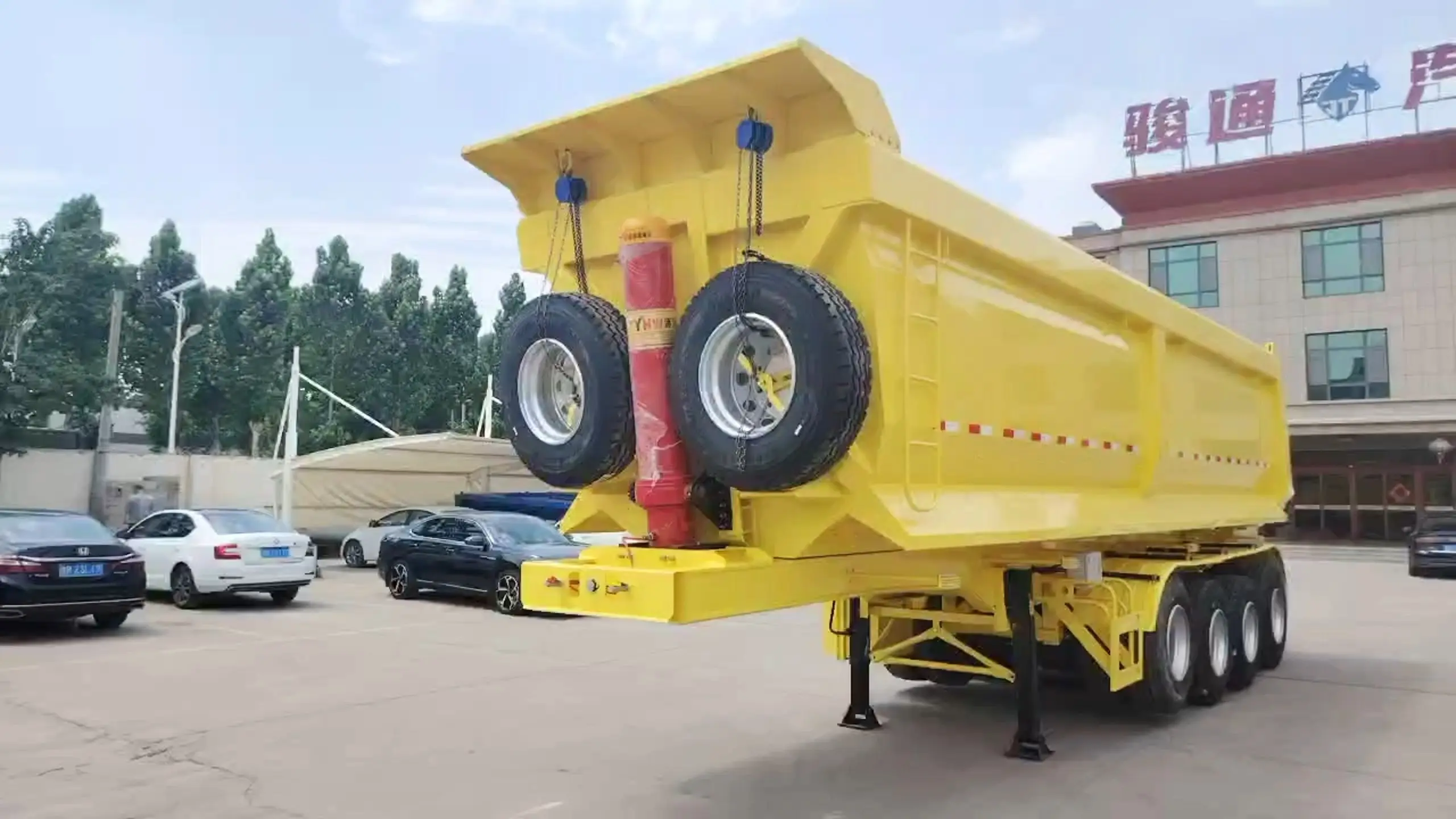

4 Axle 35 CBM Tipper Semi Trailer
The 4 axle tipper semi trailer is made of high strength and wear-resistant Hardox steel, with a design capacity of 35 cubic meters, equipped with German air suspension and 385/60R22.5 tires, and a front HYVA lifting cylinder.
| Specifications | |||
| Overall dimension | 10000 *2500 * 3850mm | cargo box | 9000x2300X1500mm |
| Loading Capacity | 60T | Wheel Base(mm) | 6880mm+1310mm+1310mm |
|
Semi Trailer Chassis
|
|||
| Platform plate |
3mm Checkered steel plate
|
The material of Main beam | The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm,middle plate is 10mm.Q345B |
| Thickness |
bottom 10 side 8 mm
|
Axle brand |
13TON Fuwa axles brand
|
| Axle Number |
3/4
|
Suspension system | Common Mechanical suspension |
| Landing gear |
28T, double speed operation
|
Leaf Spring | 10/10/10 leaf spring suspension |
| Lifting system |
Hydraulic lifting suspension
|
Traction Pin | 50MM or 90MM |
| Tire Type and quantity |
11R20.00 12pieces
|
Tool box | 1 set |
| Spare tire carrier | 2 sets | ||
| Brake system | Dual Line braking system ,none ABS. | Brake air chamber | Four double and two single chamber |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc | Electrical system | 24V,7 pin socket,One set 6-core standard Cable |
| Painting |
Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request |
||
4 Axle 35 CBM Tipper Semi Trailer
Product Description
4 Axle 35 CBM Tipper Semi Trailer offers unparalleled heavy-duty strength, capable of carrying up to 60-80 tons. With its durable construction and reliable performance, this trailer is perfect for handling large loads with ease and efficiency.
PRODUCT STRENGTH
Products Advantages
Dump trailer has several advantages: it features a strong and durable structure capable of handling heavy loads, a reliable hydraulic system for quick and efficient unloading, and a large loading capacity that improves transport efficiency. Its design reduces manual labor, lowers operating costs, and is suitable for use in rough working conditions such as construction sites, mining areas, and infrastructure projects.
WHY CHOOSE US?
Product Characteristics
4 Axle 35 CBM Tipper Semi Trailer is characterized by its high loading capacity, robust steel construction, efficient hydraulic lifting system, and reliable braking performance. It features a reinforced chassis, wear-resistant body, and is adaptable to a wide range of working conditions such as construction, mining, and bulk cargo transport.
