Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.
Semi Tractor Manufacturers Chinafrom China
Product details of the semi tractor manufacturers
Quick Overview
The outline of semi tractor manufacturers is reasonably designed. Adopting the advanced testing equipment to inspect the product during the production process guarantees the great performance and consistent quality of the product. The product has been widely recognized by customers and shows great market potential.
Product Introduction
Compared with other products in the same category, semi tractor manufacturers has outstanding advantages which are mainly reflected in the following points.
Product Description：
The tanker is a special vehicle used to transport and store various liquid substances, and its use is very wide. Not only can it transport petroleum, chemical raw materials, acids, light industrial products, medicine, pigments, food, various liquid gases, etc., but it can also transport liquids from one place to another, such as transporting gasoline from refineries to gas stations for cars, and transporting diesel from other places to power plants. In addition, tank trucks can also be used for the distribution of liquid substances, distributing gasoline from gas stations to various refueling points for consumers to use. In fire rescue, tanker trucks can also play an important role in transporting water from fire stations to fire sites for fire crews to use.
In addition to the transportation function, the tanker can also be used for construction projects to transport materials such as cement and asphalt to the construction site for use by construction team members. In the field of agricultural production, tanker trucks can transport pesticides, fertilizers, seeds and other substances to fields for farmers to use to increase crop yields. At the same time, tank trucks can also be used for warehousing logistics, transporting materials from warehouses to designated locations, such as transporting goods from warehouses to retailers for sale. In addition, tank trucks can also be used for environmental protection projects to transport hazardous waste from factories to treatment sites to reduce pollution to the environment.
Parameter:
Specification | |

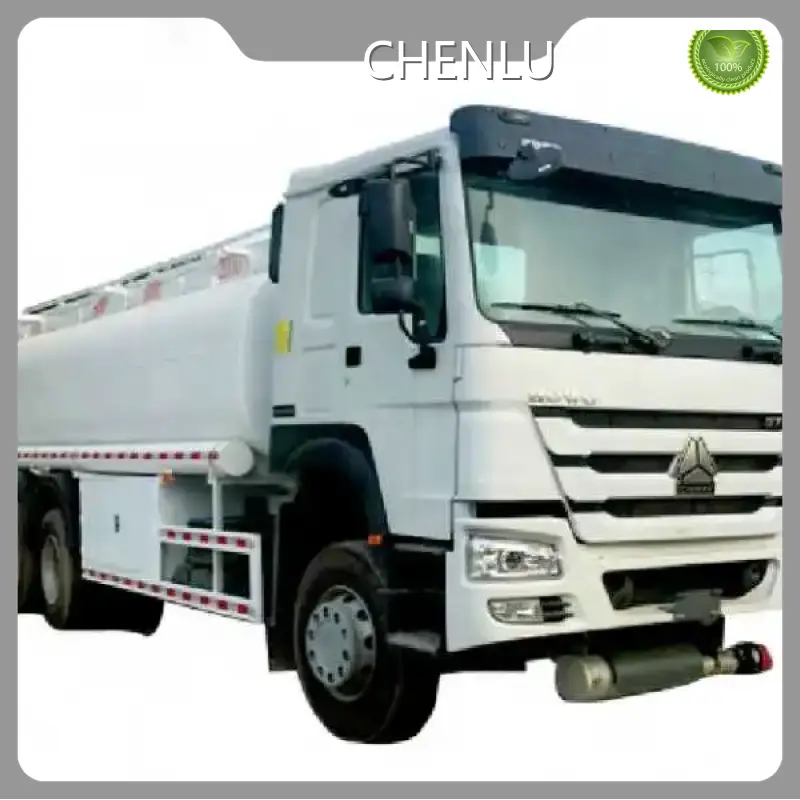

Product Name | Sinotruk HOWO 6*4 oil tanker truck |
Description | |
Truck Model | ZZ1257V4647 |
Driving Position | Left hand Driving |
Fuel tanker capacity（L） | 300 |
Dead Weight | 13700kg |
Wheelbase（mm） | 5225+1350 |
Color | White |
Tanker | |
Tank capacity | 20000 liters |
Material | Q235 Carbon Steel |
Body | Body thickness:5mm front/rear plate:6mm |
Compartment | 2 10m3+10m3 |
Manhole | 2 European standard |
Bottom Value | 2 |
Discharge Value | 2 |
Lifting Ladder | Including Top walkway and backside |
Engine | |
Model | WP.400E201 |
Power | 400hp |
Emission | EURO3, water-cooled，four strokes，6 cylinders in line, directly injection |
Kind of Fuel | Diesel |
Fuel Consumption(L/100km) | 25L/100km |
Transmission Type | HW 19710 Manual |
Clutch | Reinforced diaphragm clutch, Diameter 430mm |
Steering System | ZF8098,Power steering |
Gear oil pump | |
Model | 76YCB-40(F) |
flux m3/h | 40 |
In /out cabiber mm | 76 |
RPM r/min | 960 |
Metering system | LC-40 Return to Zero 3’’ discharging system |
Axles | |
Front Axle Model | VGD95 axle. Capacity: 7000kg |
Rear Axle | HC16 axle Capacity: 16000kg |
Wheels & Tyres | |
Type | 12R22.5 New |
Material | Tubeless tires |
Quantity | 10 +1spare |
Brake System | |
Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels |
Auxiliary brake | Engine exhaust brake |
Electrical System | |
Battery | 2X12V/165Ah |
Alternator | 28V-1500kw |
Starter | 7.5Kw/24V |
Cabin | |
Type | HW76 Cabin |
One sleeper with air conditioner，all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |
Other | |
102km/h speed limiter; 2 fire extinguisher；English plate;Tool box | |
Company Introduction
Shandong Chenlu International Trade Co., Ltd. is one of the leading manufacturers in China being able to offer semi tractor manufacturers with award-winning design and quality. Our factory has state-of-the-art manufacturing facilities that introduced from various developed countries. They play a significant role in supporting daily production demands, from product developing stage to the packaging stage. Stimulating innovation dynamism also is an important part in the culture of Chenlu Trailer. Ask online!
We have strong strength and rich experience. And we are looking forward to discussing business cooperation with partners from all walks of life!
