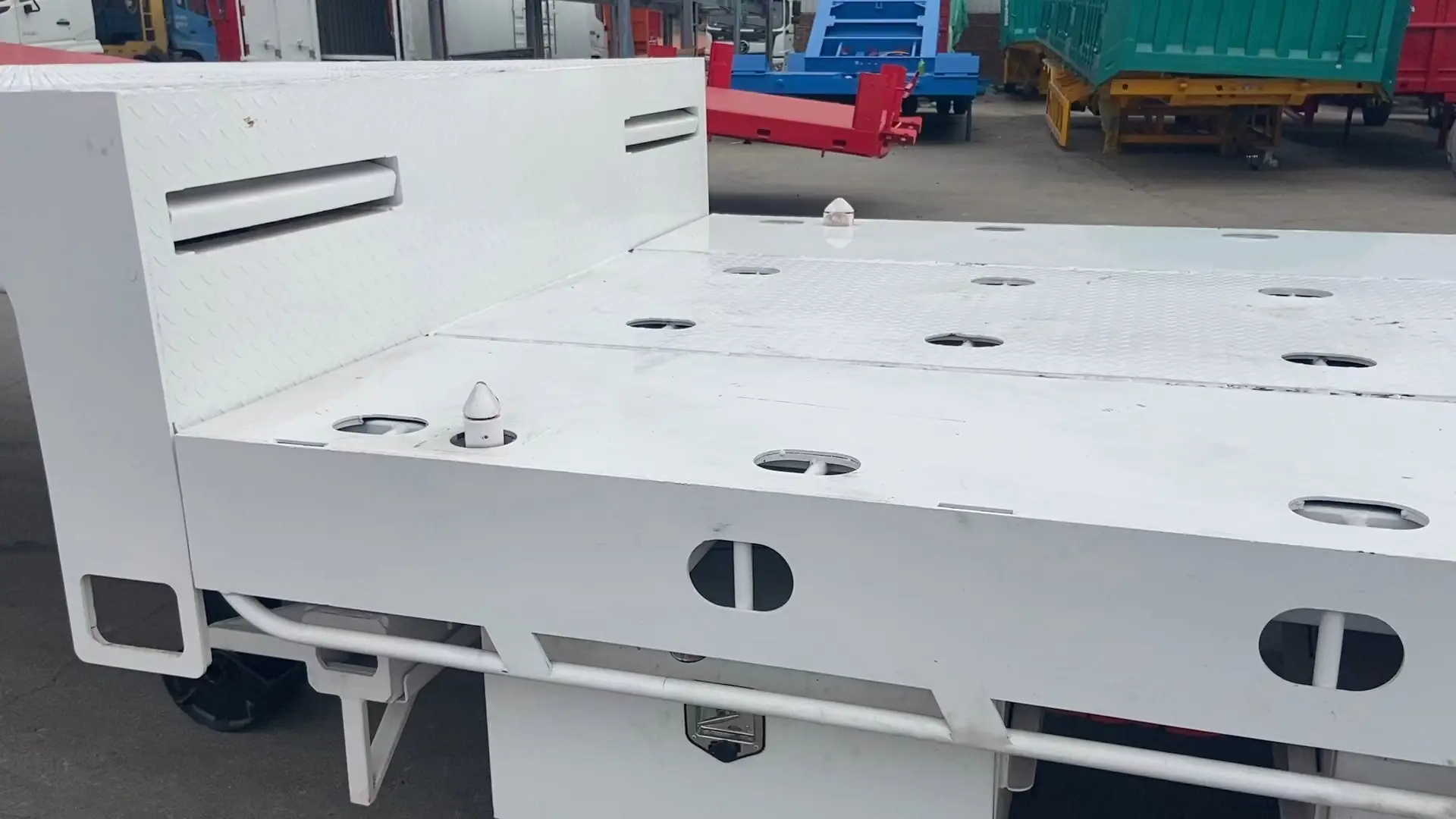

3 axle lowbed trailer with hydraulic ladder for Australia 1

3 axle lowbed trailer with hydraulic ladder for Australia 2

3 axle lowbed trailer with hydraulic ladder for Australia 3

3 axle lowbed trailer with hydraulic ladder for Australia 4

3 axle lowbed trailer with hydraulic ladder for Australia 5

3 axle lowbed trailer with hydraulic ladder for Australia 6

3 axle lowbed trailer with hydraulic ladder for Australia 7

3 axle lowbed trailer with hydraulic ladder for Australia

3 axle lowbed semi trailer with hydraulic ladder for Australia adopts Q345B high strength steel and 450mm main beam design, is equipped with BPW axles, WABCO ABS and air suspension system, and is equipped with hydraulic ladder reinforcement design. The lighting meets Australian ADR standards.

Delivery time:

7-22 days

Product origin:

Shandong

Brand:

CHENLU

Warranty:

2 Years

After-sales Service:

Video call/online consultation/training and operation guidance

Inquiry

Write a Review

Vehicle Specifications			Main Beam Specifications
Overall Dimensions			Height	450MM	Material	Q345B
Length		13730MM	Upper Flange		16MM / 140MM
Width		2500MM (extendable to 3500MM)	Lower Flange		18MM / 140MM
Height		1550MM	Web Plate		10MM
Vehicle Configuration Specifications
Common Name	I-beam steel and 100 channel steel		Kingpin		KH kingpin, double kingpin
Side Beam	Standard		Landing Gear		FUWA KH 28T external landing gear
Ladder	Hydraulic folding ladder		Synchronizer		WABCO
ABS	WABCO		Airbag		6 pcs FUWA KH
Floor Plate	5mm checkered plate, manganese steel No. 3		Axle		FUWA KH 11T or casting axle, 3 pcs
Toolbox	1 piece		Tire		Triangle 265/70R19.5, 12 pcs
Spare Tire Carrier	1 piece		Rim		Matching 12 pcs
Lighting	Lighting that complies with Australian ADR standards		Suspension		FUWA KH air suspension, adjustable lift
Air tank	2 FUWA KH		Brake System		T30/30 double air chamber, 6 pcs FUWA KH
Rope tensioner hook	Standard		Electrical System		12V

3 axle lowbed trailer with hydraulic ladder for Australia

Product Description

Q345B high strength steel and a 450mm main beam design provide excellent durability and load bearing capacity. Equipped with BPW axles, WABCO ABS and air suspension systems, it is stable and safe during heavy-load transportation. It is also equipped with a hydraulic ladder reinforcement design and is suitable for container, machinery and bulk cargo transportation.

Products Advantages

3 axle lowbed trailer with hydraulic ladder for Australia is a custom made for Australia, it complies with Australian road and transport standards and usually uses high strength steel materials such as T700 or Q345B to ensure the durability and carrying capacity of the vehicle.

3 axle lowbed trailer with hydraulic ladder for Australia 9

**Durability**

High-strength steel materials such as T700 or Q345B are usually used to ensure the durability and load-bearing capacity of the vehicle.

3 axle lowbed trailer with hydraulic ladder for Australia 10

**Stability**

With robust axles designed for enhanced weight distribution, this trailer maintains excellent stability during transit. This feature is crucial for safely transporting oversized loads, reducing the risk of tipping or swaying on the road.

3 axle lowbed trailer with hydraulic ladder for Australia 11

**Versatility**

The platform length, width and height can be customized according to customer needs to meet the transportation needs of different goods.

**Safety**

The anti-slip deck design enhances safety during loading and unloading, preventing equipment from shifting or slipping. This focus on safety is essential for protecting both the transported machinery and the operators involved in the loading process.

Product Characteristics

The main cargo platform is low, usually less than 1 meter, to ensure the stability of transportation, suitable for transporting heavy and large equipment. There are 3-axle, 4-axle, 5-axle or even more axle configurations to meet different load requirements, ranging from 30 tons to 150 tons. The vehicle has passed relevant quality inspections and certifications to ensure that it meets Australian technical requirements.

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

60-ton

Customized

Australia Standard

Capacity

40-60 tons The 3 axle lowboy trailer is engineered to handle a maximum weight of 60 tons, making it an ideal choice for transporting heavy-duty equipment and oversized machinery efficiently.

Efficiency

Mechanical and Hydraulic ladders canbe customized this trailer guarantees seamless loading and unloading processes, significantly reducing the time and effort required to transport bulky items and improving overall operational productivity.

Durability

Made of high-quality materials and featuring a sturdy structure, this trailer offers excellent durability and stability, making it easy to traverse challenging terrain and provide reliable performance over long distances.
