Semi Bottom Dump Trailer for Sale 200Piece/month by Chenlu Trailer
Product details of the semi bottom dump trailer for sale
Product Introduction
Chenlu Trailer semi bottom dump trailer for sale is manufactured by the precision machining equipment. This product is guaranteed to be stable and reliable. This Chenlu Trailer branded product is really competitive in the world market.
Product Description：
Specifications | |

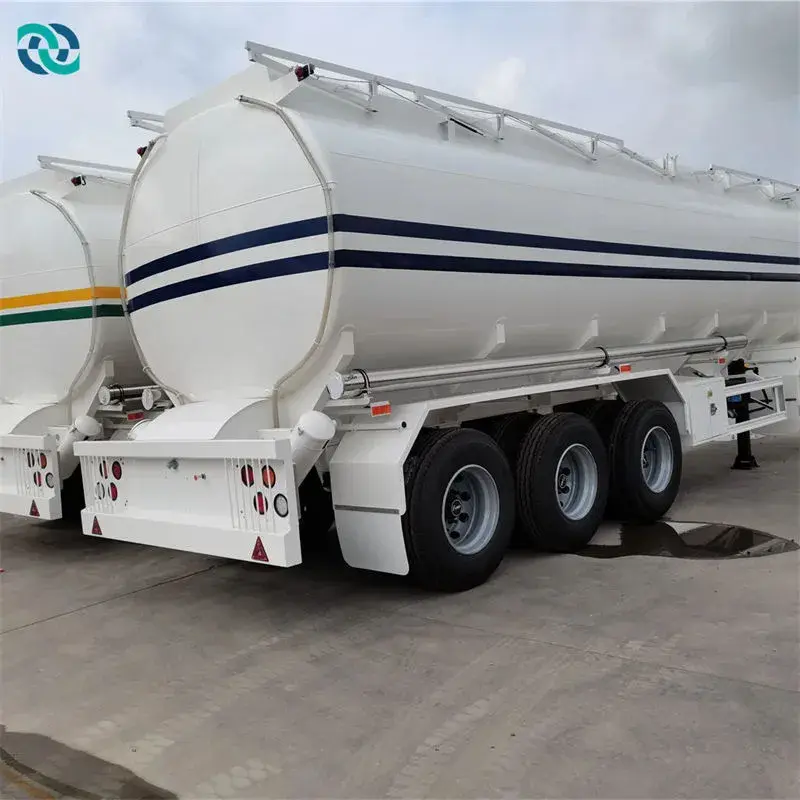

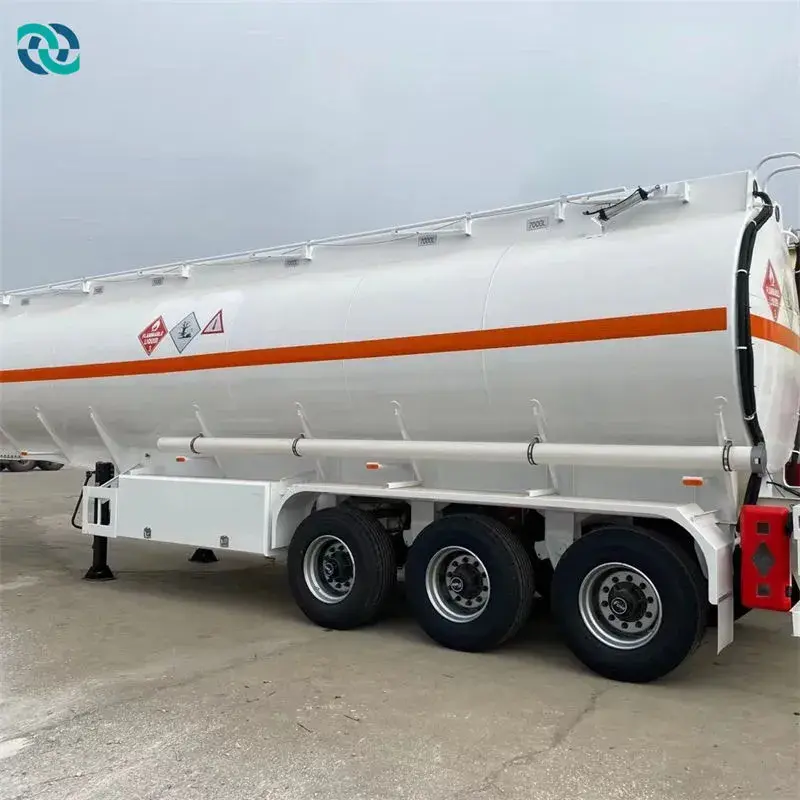

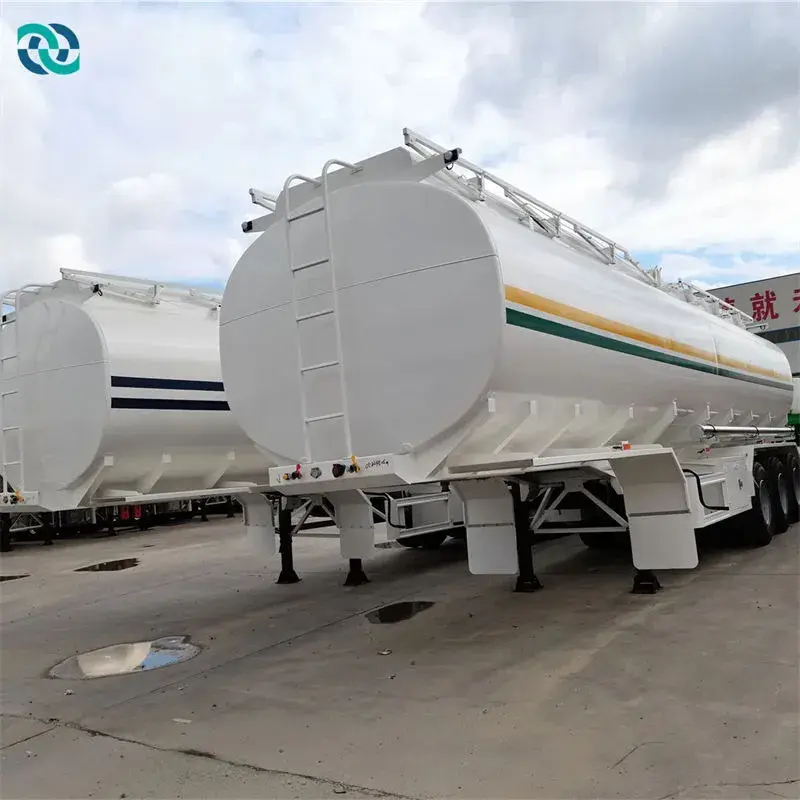

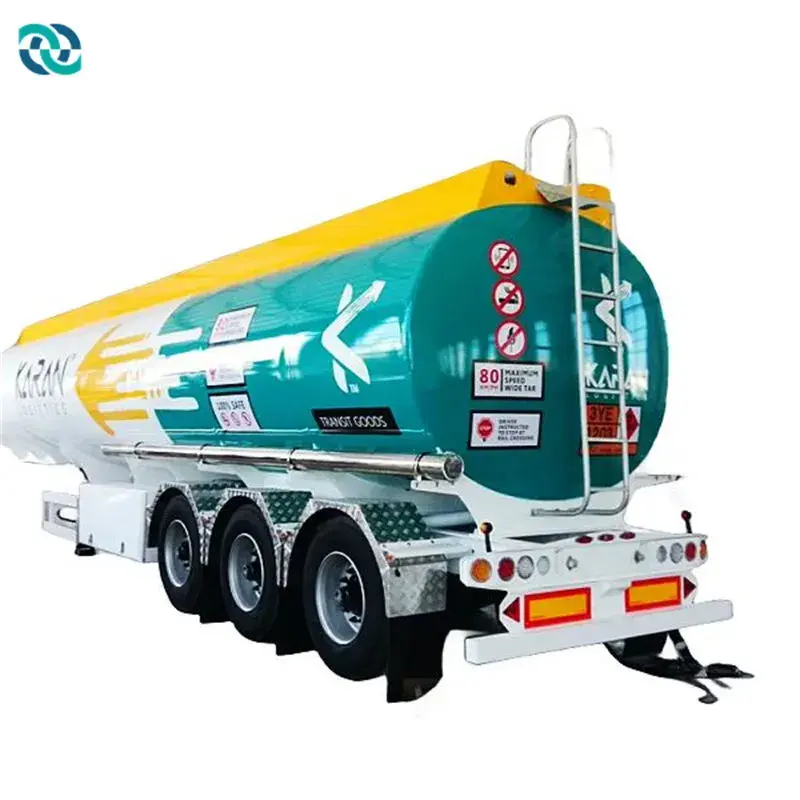

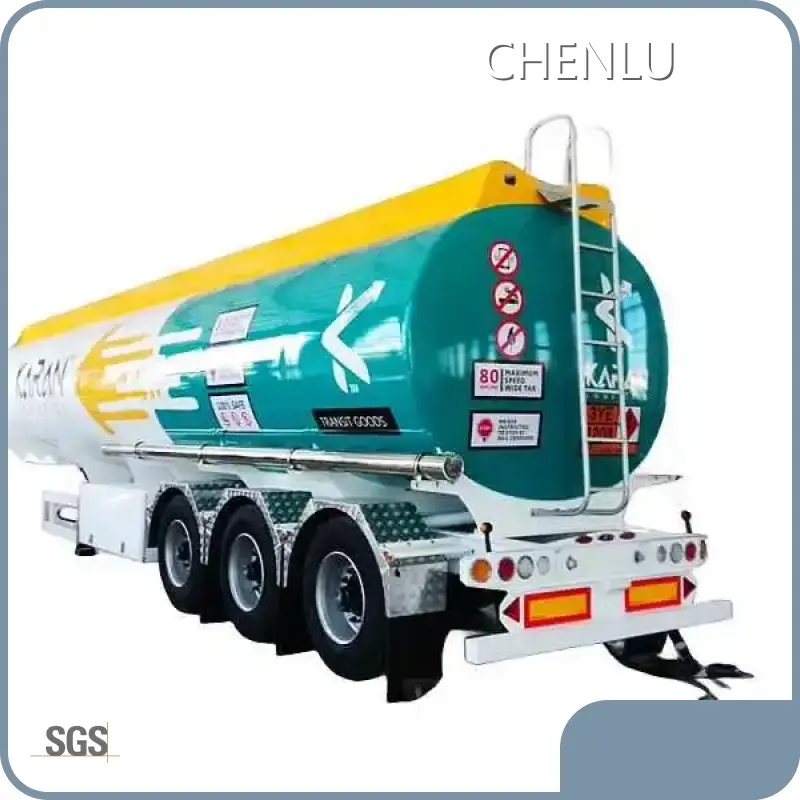

Product Name | 3 axle oil tanker semi trailer |
Over Dimensions | 11980*2500*3800mm |
Steel Structure | |
Material | Q235 Steel |
Frame | Main beam height is 500mm |
Frame Beam | Upper plate is 14mm,down plate is 16mm,middle plate is 8mm |
Landing Gear | Chinese brand 28 Tons |
subsea valve | 5 |
oil valve | 5 |
Tanker | |
Volume | 50 CBM 5+5+10+10+10+10 |
Body Thickness | 6mm |
Front/End Plate | 6mm |
Compartments | 7 compartments |
Specification | |
Axle Brand | 13TON Axle, |
Axle Number | Three |
Suspension System | Mechanical suspension |
Steel Spring | 10/10/10 leaf spring suspension |
Rim | 9.0-22.5 |
| Tire | |
| Tire Type and Quality | |
Number of Tire | 7 pieces |
Spare Wheel Bracket | 1 pieces |
Brake | |
Brake System | Dual line braking system |
Brake Chamber | Four Double and two single chamber, optional WABCO |
Electrical System | |
Cable | One set 6-core standard Cable. |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Light | Tail lamp with turn signal,brake light & reflector, side lamp etc. |
Miscellaneous | |
Side Guard | With |
Painting&Marking | According to customers’ requirement |
Weight | |
Tare Weight | 9000kg |
Axle Weight Load | 13T |
Specification | |
Axle number | 3 Axle |
Axle Brand | Fuwa or BPW |
Suspension | Common mechanical or Air suspension |
King Pin | 2'' or 3.5'' traction pin |
Dimensions | 11980*2500*3800mm |
Wheel Rim | 9.0-22.5 steel wheel rim |
Steel Spring | 10 pieces per axle |
Tank body & end plate | Q235/5mm steel & 6mm steel sheet |
Manhole cover | 500mm manhole cover. 2 sets with 2 breather valve |
Discharge valve & Pipe | 4'' disc valve & 4'' seamless steel tube |
Bottom valve | 1-2 sets of aluminum API pneumatic bottom valve |
Landing Gear | 28T Manual operating,Heavy duty landing gear |
Accessories | 1 Set standard tool box |
Light | Tail lamp with turn singnal,brake light & reflector,side lamp etc. |
Painting | 1 coat of anticorrosive prime,twice coats of final paint |
Tire | |
Tire spe. | 12R22.5 |
Number of Tire | 12 pieces |
Spare Tire Carries | 2pieces |
Frame | |
Main beam | Q345 Steel The height of the beam is 500mm Down plate is 16mm;middle plate is 8mm |
Air/Elec. Connector | ISO standard air connector,24V 7 pin plug socket |
Color | Upon request |
