Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.
Professionalflatbed Semi Trailer Manufacturers China 200Piece/month
Product details of the flatbed semi trailer manufacturers
Product Description
The production of Chenlu Trailer flatbed semi trailer manufacturers is completed by international advanced technology, ensuring smooth, efficient, and precise product. flatbed semi trailer manufacturers is great in the field with high-performance. Shandong Chenlu International Trade Co., Ltd. works hard to promote flatbed semi trailer manufacturers industry’s innovation and development.
Product Description：
The model and fence structure design is reasonable, fully considering the diversity of the user's cargo types, and can meet the lightweight needs under different load conditions.
The frame is a space frame structure composed of longitudinal beam and whole penetrating beam, which has the characteristics of high strength, high stiffness, strong bearing capacity and good stability.
The warehouse grid semi-trailer frame is a cross-beam structure, and the longitudinal beam is flat or gooseneck, which is conducive to the loading and unloading and transportation of goods.
The new suspension system has the characteristics of high strength, strong impact resistance, balanced load of each axle, reasonable design of the system pull rod Angle, etc., which can reduce tire wear and avoid the phenomenon of tire off-running-in wheel nibbling, and can adjust the wheelbase to effectively avoid the phenomenon of tire off-running-in wheel nibbling.

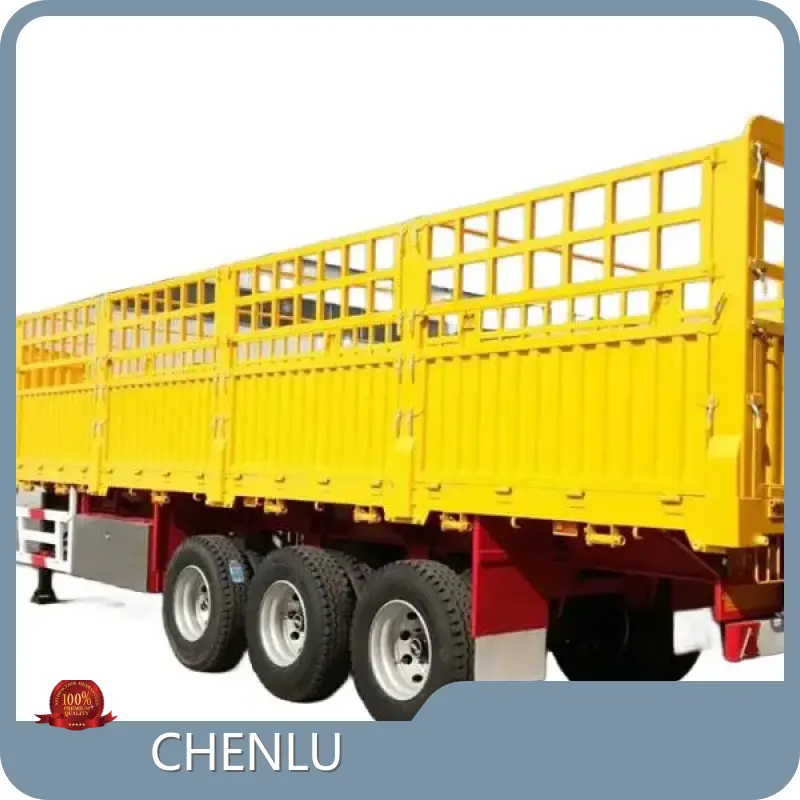

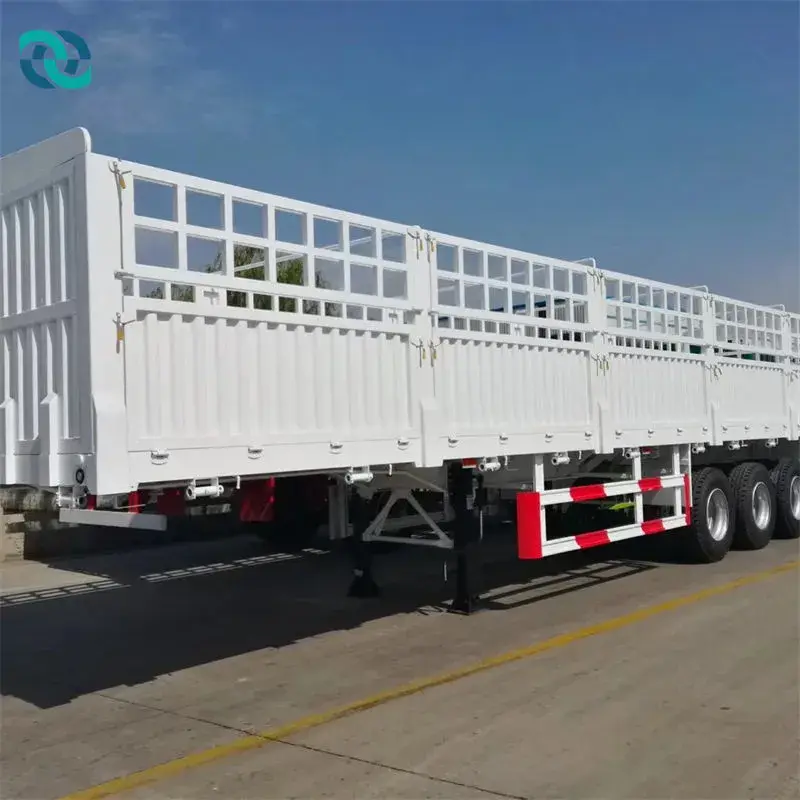

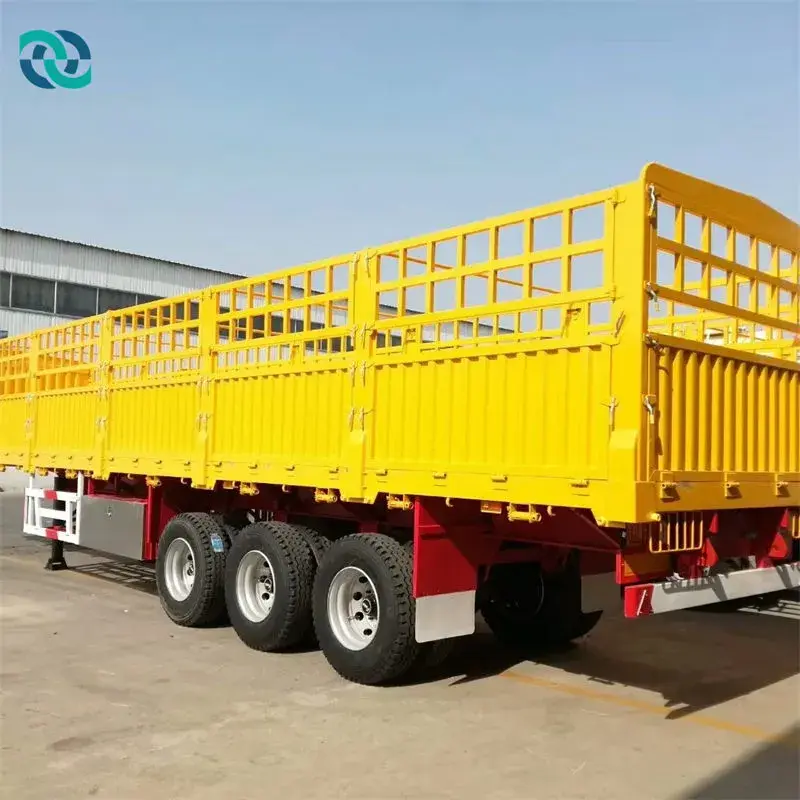

Fence semi-trailer is mainly used for the transportation of agricultural and sideline products and other light bubble goods, which can effectively protect the safety and integrity of goods in the transportation process.
Parameter:
overall size | overall size:12500mm L * 2500MM W, height:3850MM inner tipper box size: 123000mm L* 2350mm W*800mm+450mm+450mm H |
wheelbase | 7600+1310+1310 |
weight | 7500 kg |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 12mm,width 140mm; Middle Flange 8mm; Bottom Flange 14mm,width 140mm |
Axle | 3 axles13T fuhua |
Tyre | TRIANGLE brand 12R22.5-18PR |
Rim | ZHENGXIN 9.0-22.5 |
leaf spring | 90width*10pieces*16thickness |
Suspention | Heavy-duty suspension |
Cargo body | high tensile steel ,Compartments body side plate 1.2mm and bottom plate 3mm, body high 800mm |
Relay valve | WABCO |
landing gear | 28 tons |
kingpin | 50# |
spare tire carrier | Chain hoist lift |
tool box | 1.2 meter with Warded lock |
Rope hook | Interval is 1000mm |
Tight rope device | Each side 4 |
brake chamber | stored chamber T30/30/30 6PCS, Energy storage 40L ,We need shake hands brake chamber and one each in red, yellow, joints, and interfaces with tire inflation hose 20 m |
Electrical system | 24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors |
Paint (short and blasting ) | painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns dft),whole trailer wax .Two dozen sand process |
Company Advantage
• With a focus on talent development, our company has now established an experienced production team of high quality and high efficiency. Based on the exquisite technology, our team members have produced more than a batch of high-quality products for our company.
• Since the inception in CHENLU has gone through years of hard work. In the difficult exploration of 'theory-practice-reorganization-repractice', we have found out the right road of sustainable development in advantages of national policy. It lays a solid foundation for our future development.
• Superior geographical location, traffic convenience, and developed communication create a good external environment for CHENLU's development.
Thanks for your interest in CHENLU's Dump semi trailer,Lowbed semi trailer,Flatbed trailer. If you are interested in our products, please feel free to contact us to place orders. You can enjoy discounts on your first purchase!
