Product details of the low loader flat bed

Product Overview

Our low loader flat bed can be customized to different sizes, color and shapes. Quality assurance: the product is under strict quality control procedure during production and careful inspection before delivery. All these measures make contributions to quality assurance. The product meets the varied expectations of our valuable clients and has a good future with a very variety of applications.

Product Information

Compared with similar products, our company's low loader flat bed has the following outstanding features.

Product Description：

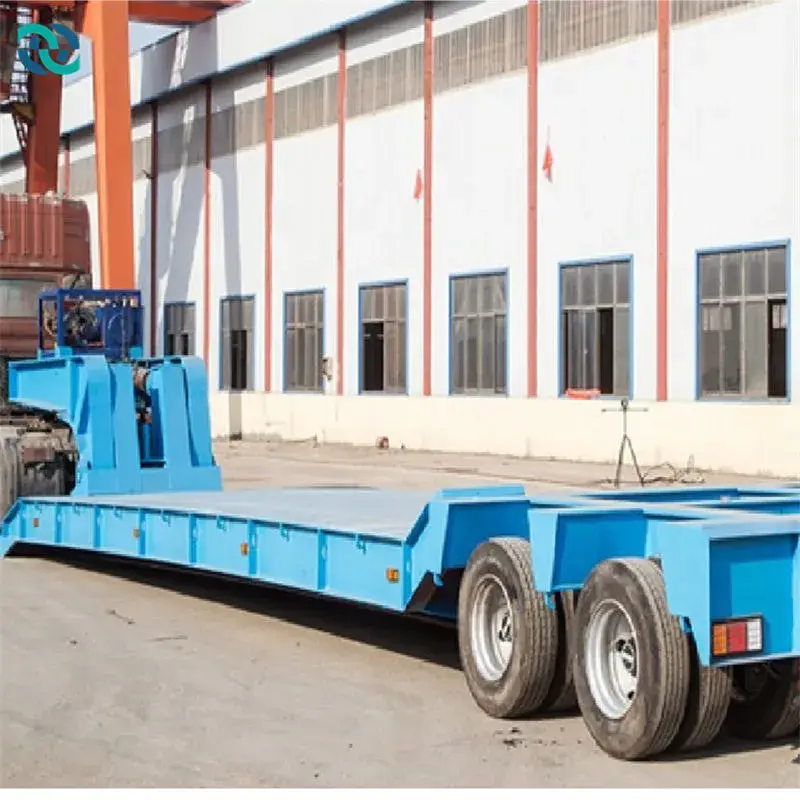

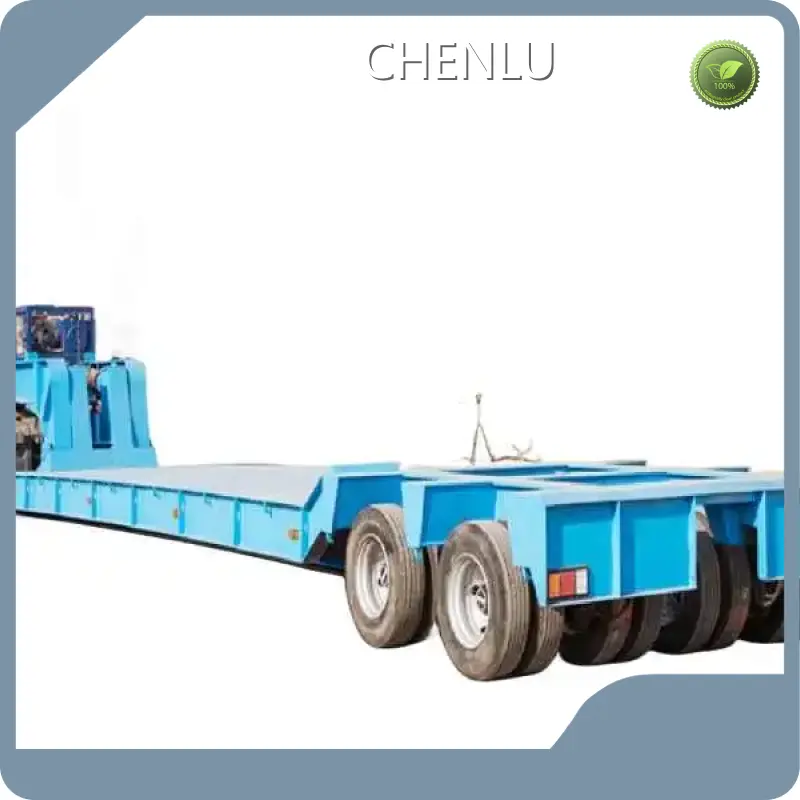

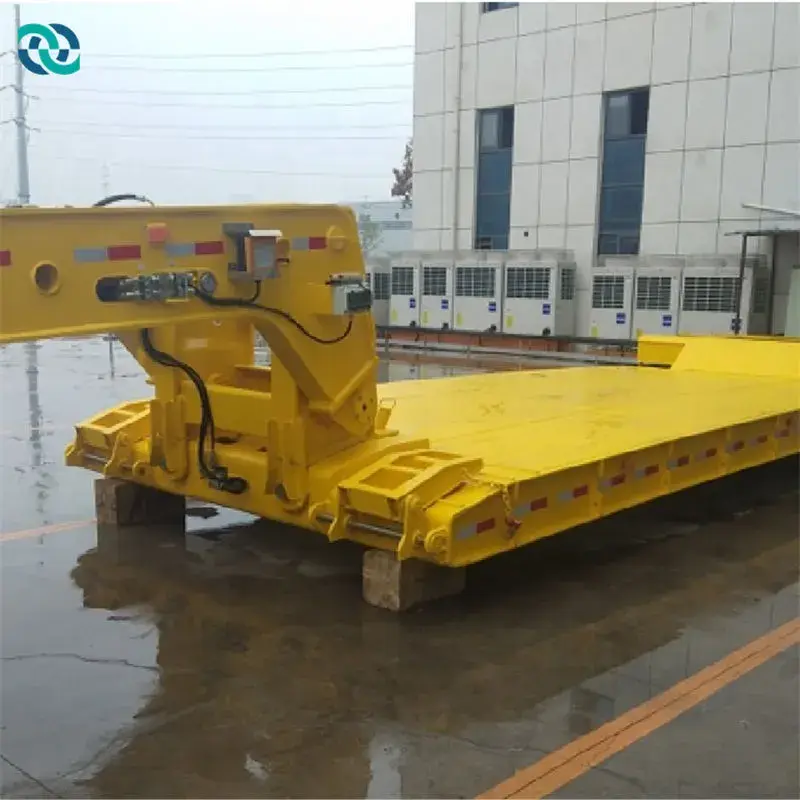

The detachable hydraulic plate semi-trailer is a flexible means of transport, and its main feature is that it has a detachable gooseneck part, which can easily drive the mechanical equipment from the front end of the trailer to the work plate to complete the loading.

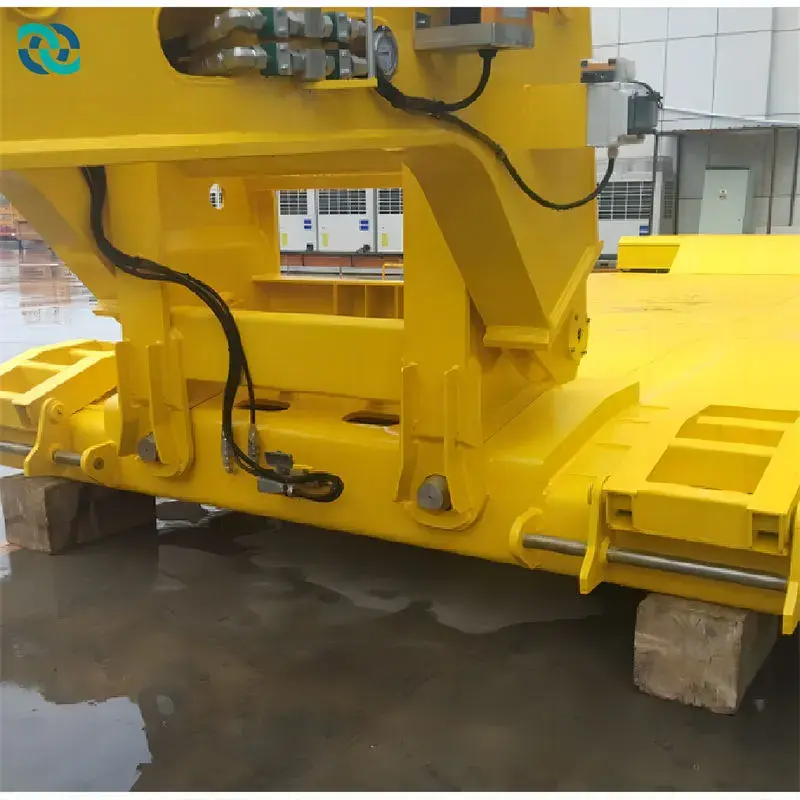

Specifically, the inside of the gooseneck of this semi-trailer is usually configured with four hydraulic tops, which are located on the inside sides of the gooseneck, two hydraulic tops on the longitudinal beam and two hydraulic tops on the beam. By operating the hydraulic device, the hydraulic device of the longitudinal beam can be lifted up and down to achieve the lifting of the work plate, while the hydraulic device of the beam can be moved back and forth to achieve the separation of the gooseneck and the work plate.

This semi-trailer has great convenience in loading and transporting machinery and equipment, and can quickly realize the separation and docking of the gooseneck and the bearing platform, so that the loading of machinery and equipment is more convenient, fast and efficient.

Parameter:

Dimension(Lx W x H)（mm）	13600*3000*1750
Curb Weight(KG)	11500
Loading Weight( KG)	50000
Total Wheight(KG)	61500
Departure Angle	12
Axle Brand	13TON Axle
Axle Number	2/3/4
	7580+1310
	Mechanical suspension
Steel Spring	10/10
Frame	The height of the beam is500mm,upper plate is 20mm,down plate is 20mm,middle plate is 12mm.according to the buyer’s requirement
Platform plate	4mm Diamond Plate
Tire Type and quantity	1100R20  8units
Traction Pin	50mm or 90mm
Spare Wheel Bracket	2 picecs
Tool Box	1 Unit
Brake system	Dual Line braking system ,none ABS.
Brake air chamber	4 air chambers
Electrical system	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	24V,7 Pole plug
	One set 6-core standard Cable.
Side Guard	None
Painting	Color by customer’s requirement
Packing	Polish with wax before shipping
Delivery way	Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume.
Customized & OEM	customer service

Company Introduction

Shandong Chenlu International Trade Co., Ltd. is a company. We are mainly engaged in the production, processing and sales of Dump semi trailer,Lowbed semi trailer,Flatbed trailer. Our company adheres to the 'quality first, pursuit of excellence, steady development' as our business philosophy, and we carry forward the spirit of enterprise of 'being honest and trustworthy, treating people with sincere, cooperating for mutual benefit'. We strictly control our product quality, and strive to build a first-class brand. We are committed to becoming industry leader, based on the principle of customers-centric. CHENLU has an elite team with high cohesiveness and technical skills, which provides a strong guarantee for corporate development. CHENLU always adheres to the service concept of 'meeting customer needs'. And we are committed to providing customers with a one-stop solution that is timely, efficient and economical.
Welcome all customers in need to purchase our products.
