Product Description：

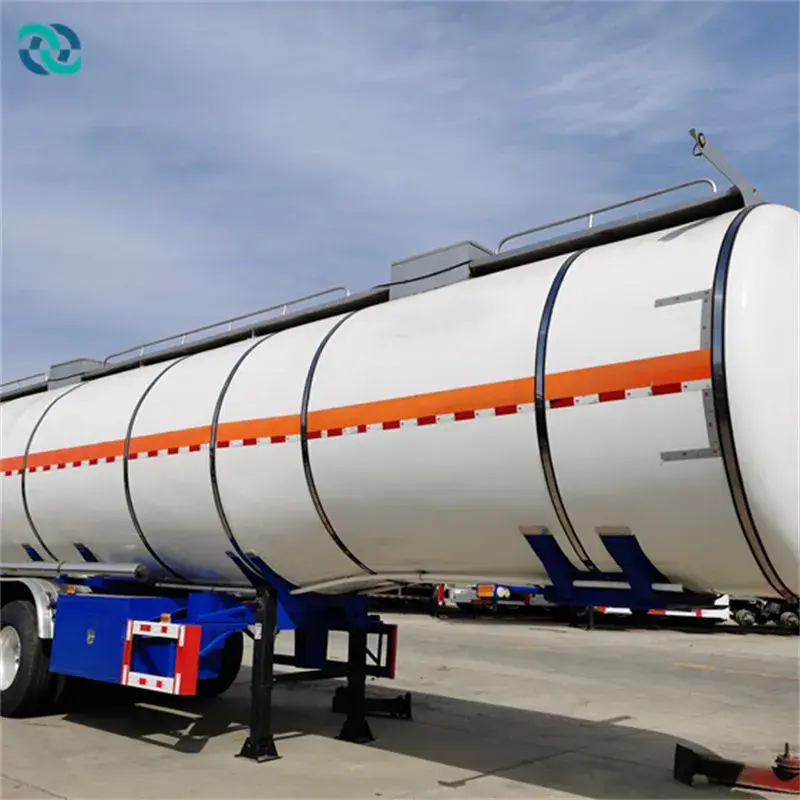

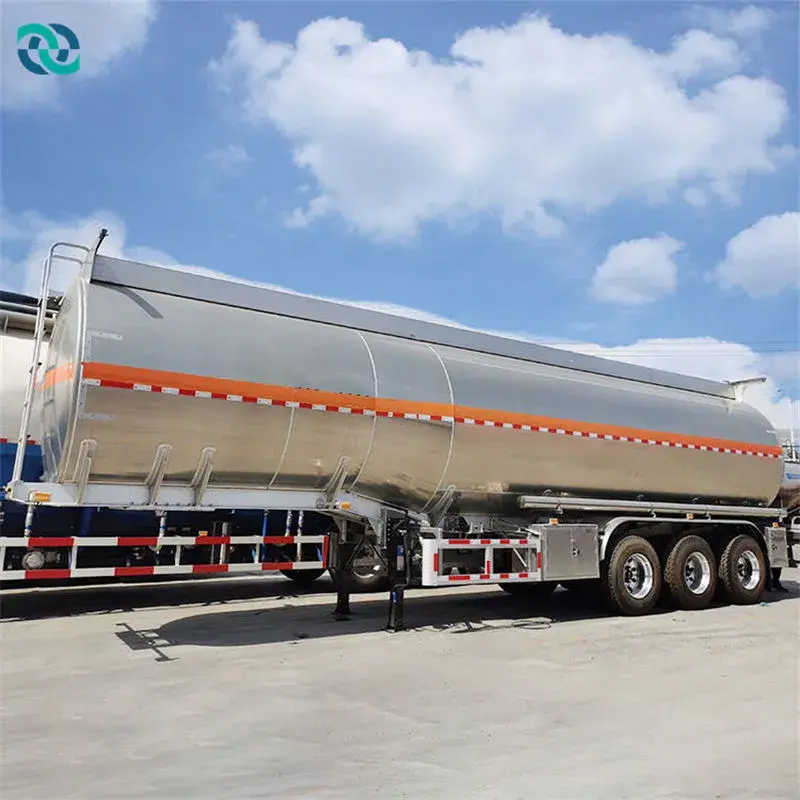

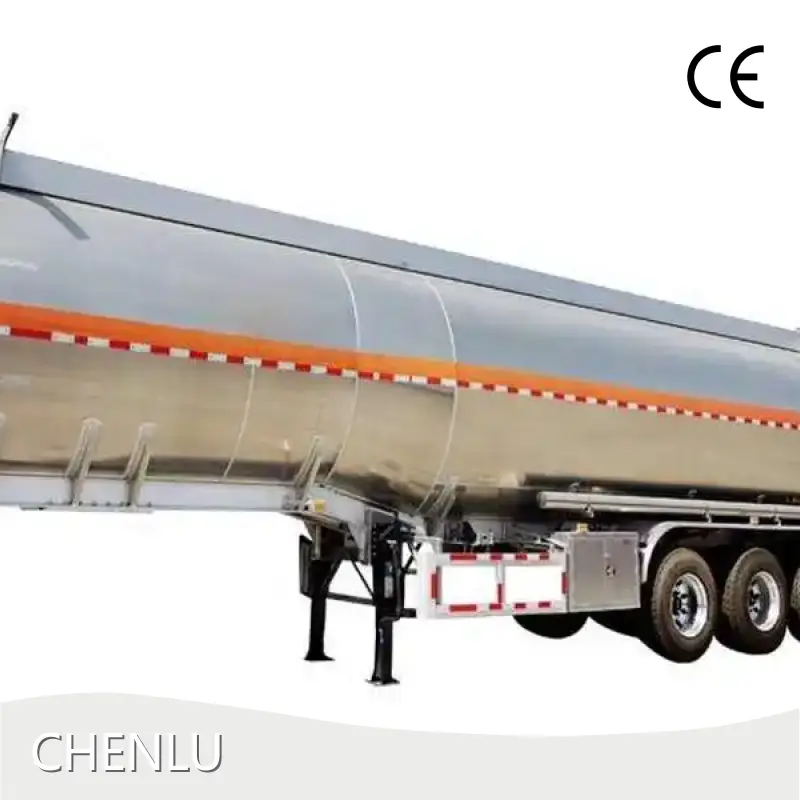

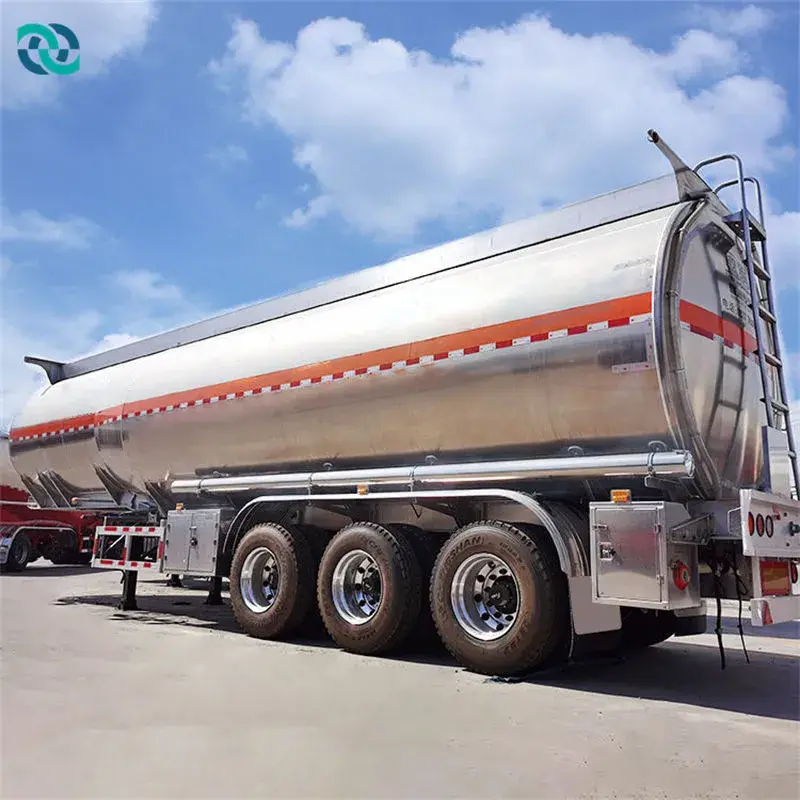

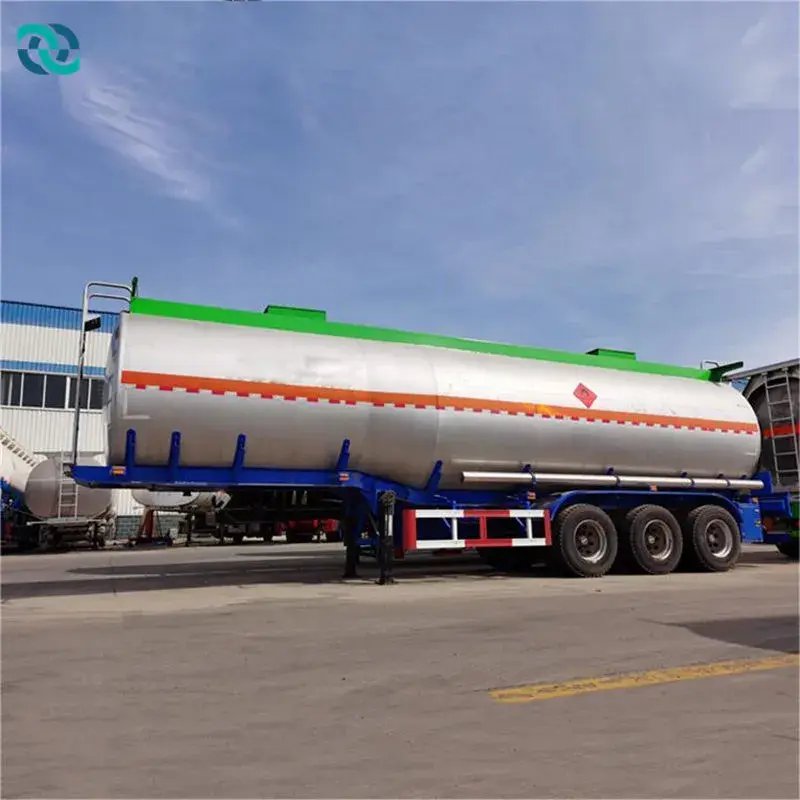

The tanker semi trailer is a tool specially used for transporting various liquid substances. They are widely used in the fuel industry, the chemical industry and other sectors to transport different types of liquids such as fuel oil, gasoline, water, food, chemicals and building materials. These semi-trailers can safely and efficiently transport liquids from production plants or storage facilities to different destinations, such as gas stations, industrial facilities, water supply systems and construction sites. They play an important role in ensuring the safe storage and transportation of liquid cargo, providing stable and reliable transportation performance to meet the transportation needs of various industries
Parameter:
Name | Aluminum Alloy tanker semi trailer |
Trailer Model | Round Shape or Ellipse |
Outside Dimensions | 11000mm-13000mmX2490mmX3950mm/3800mm-3900mm |
Tare weight | About 8-12.8T |
Total Volume | 25m³-60m³ |
Material | Q235B/Q345B carbon steel，5XCT4aluminum5454，304 stainless steel |
Tanker Body Material | 6mm/5mm Q235B/Q345B carbon steel,7mm/6mm 5XCT4 aluminum 5454, 5mm/4mm 304 stainless steel |
Axles | 13T/16T, FUWA/BPW/HuaJing brand |
Axle Number | 3/ Axle or multi axle |
Main Beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm,middle plate thickness is 8mm-12mm,down plate thickness is 16mm-25mm;Material is Q345 manganese steel . |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
King Pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
Support legs | JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) |
Rear ladder | Dismountable or foldaway |
Wheelbase | 8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm |
Spring leaf | 12 pieces |
Manhole Cover | 6 piece Carbon steel API manhole cover ,500mm European standards |
Brake Chamber | 6 double brake chamber |
Electrical System | 24V, 7core socket, lights according to European standards |
Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher |
Other tools | A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) |
Discharge mouth | diameter is 280mm |
Receptacle | 7ways (7wire harness) |
Company Advantages
· An innovative element is added into the design of Chenlu Trailer semi trailers for sale.
· Its quality test is conducted by a professional team.
· Chenlu Trailer can also guarantee the fast delivery time.
Company Features
· Shandong Chenlu International Trade Co., Ltd. is a senior semi trailers for sale manufacturer with modern production lines.
· semi trailers for sale is produced in strict accordance with international quality standards.
· Our business philosophy is based on the highest standards. We always strive to better understand the wants, needs, and expectations of our customers and to constantly exceed them.
Application of the Product
The semi trailers for sale produced by our company is suitable for various occasions in industry.
With a focus on Dump semi trailer,Lowbed semi trailer,Flatbed trailer, CHENLU is dedicated to providing reasonable solutions for customers.
