Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.
High End Flatbed Tractor Trailer Price List
Product Description：
Advantages of carbon steel tanks include:
1. The strength of carbon steel tank is higher than that of aluminum alloy tank and can withstand greater pressure and impact.
2. The price of carbon steel is relatively low, so the production cost of carbon steel tank is also low.
3. When the carbon steel tank is damaged, it can be easily repaired by welding.
Advantages of aluminum cans include:
1. The weight of the aluminum alloy tank is lighter than that of the carbon steel tank, which can reduce the overall weight of the vehicle, reduce fuel consumption and tire wear.
2. Aluminum alloy cans have good resistance to corrosive substances and can remain bright and beautiful for a long time without surface treatment.
3. The aluminum alloy can has good electrical conductivity, which can effectively avoid static electricity and improve transportation safety.
4. The corrosion resistance and oxidation resistance of aluminum alloy cans are good, and the service life is long, generally up to 15-20 years.
Parameter:
Specifications | |

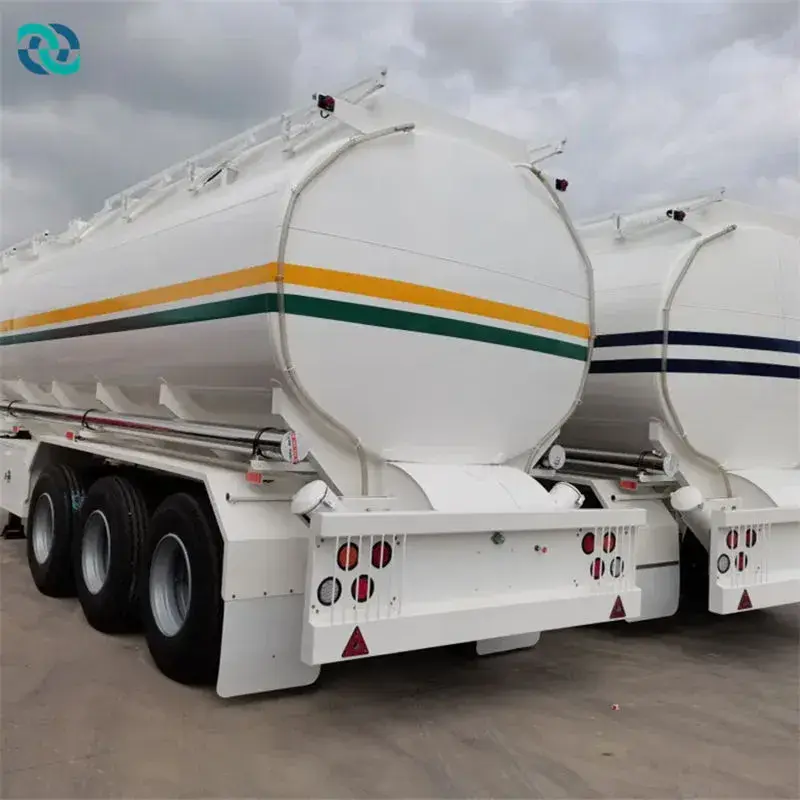

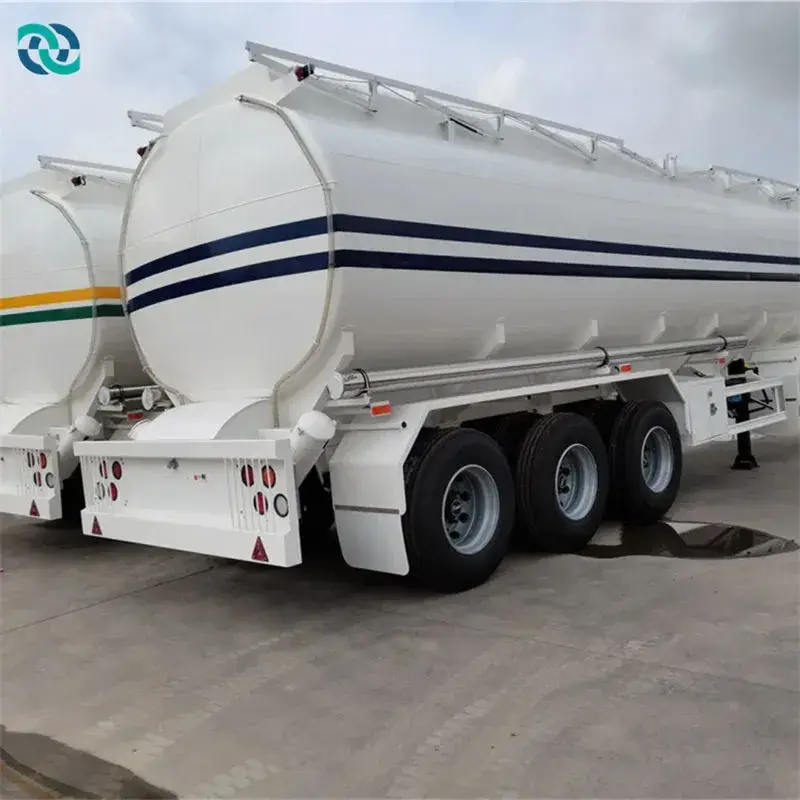

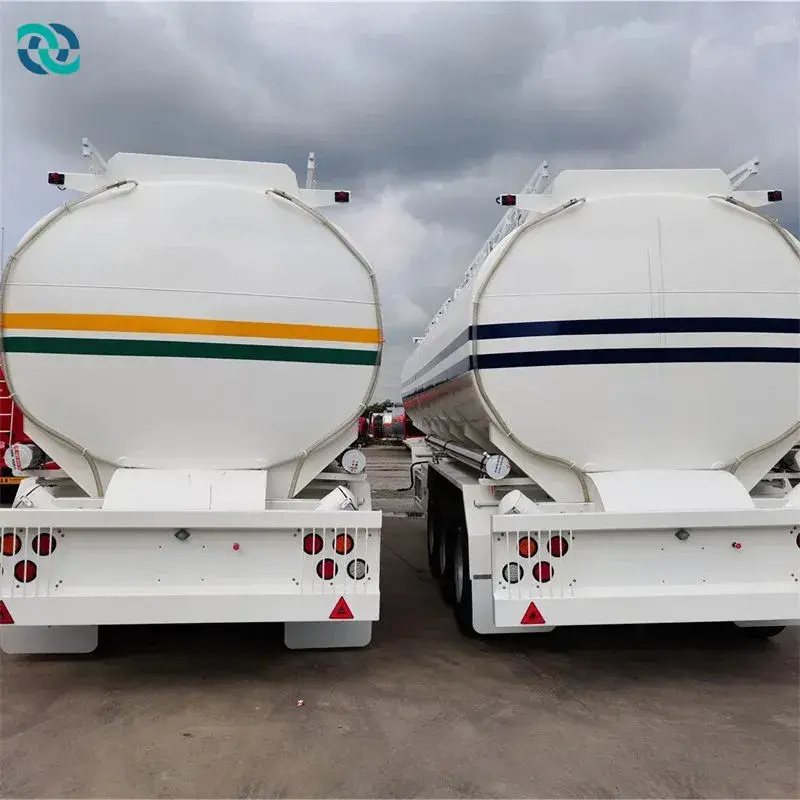

Product Name | 3 axle oil tanker semi trailer |
Over Dimensions | 13500*2500*3900mm |
Steel Structure | |
Material | Q235 Steel |
Frame | Main beam height is 500mm |
Frame Beam | Upper plate is 14mm,down plate is 16mm,middle plate is 8mm |
Landing Gear | Chinese brand 28 Tons |
subsea valve | 5 |
oil valve | 5 |
Tanker | |
Volume | 50 CBM 5+5+10+10+10+10 |
Body Thickness | 6mm |
Front/End Plate | 6mm |
Compartments | 7 compartments |
Specification | |
Axle Brand | 13TON Axle, |
Axle Number | Three |
Suspension System | Mechanical suspension |
Steel Spring | 10/10/10 leaf spring suspension |
Rim | 9.0-22.5 |
Tire | |
Tire Type and Quality | 385/65R22.5 ,7 units |
Number of Tire | 7 pieces |
Spare Wheel Bracket | 1 pieces |
Brake | |
Brake System | Dual line braking system |
Brake Chamber | Four Double and two single chamber, optional WABCO |
Electrical System | |
Cable | One set 6-core standard Cable. |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Light | Tail lamp with turn signal,brake light & reflector, side lamp etc. |
Miscellaneous | |
Side Guard | With |
Painting&Marking | According to customers’ requirement |
Company Advantages
· flatbed tractor trailer is endowed with exquisite technics and unique style.
· The product is strictly checked by QC team for many rounds to make sure no quality problems.
· Advanced equipment, professional design, exquisite and timely service is Shandong Chenlu International Trade Co., Ltd.'s commitment to every customer.
Company Features
· Shandong Chenlu International Trade Co., Ltd. is a one-stop flatbed tractor trailer products supplier.
· Our company has powerful economic strength and technical advantage.
· Shandong Chenlu International Trade Co., Ltd. strives to provide customers with all-round quality services. Ask online!
Application of the Product
flatbed tractor trailer of CHENLU can be used in different industries to meet the needs of customers in different fields.
CHENLU is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
