Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.
Creative Semi Trailer Supplier Price List
Product details of the semi trailer supplier
Quick Detail
Chenlu Trailer semi trailer supplier has attracting designs with consistency. This product undergoes in-house quality assurance procedures conducted by our QC team. Shandong Chenlu International Trade Co., Ltd. has rich industry data, excellent professional and technical strength.
Product Information
Our semi trailer supplier is more competitive than similar products, as shown in the following aspects.
Product Description：

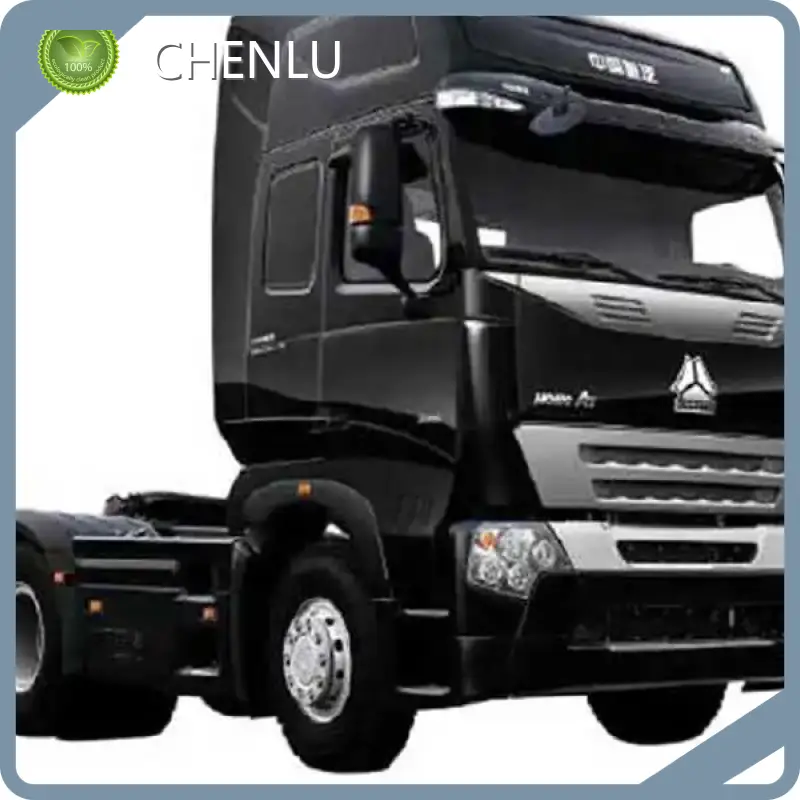

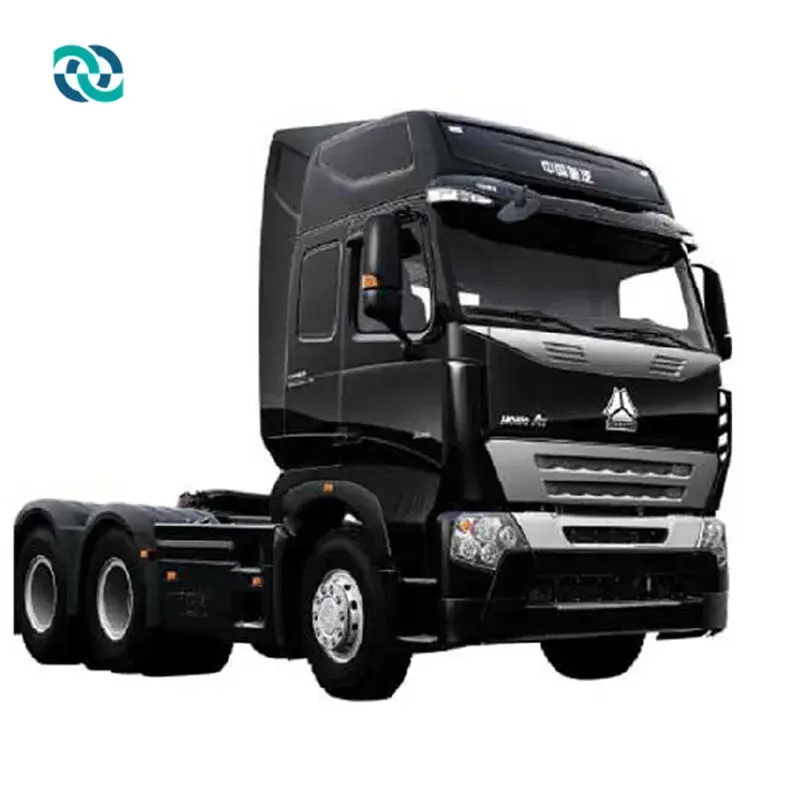

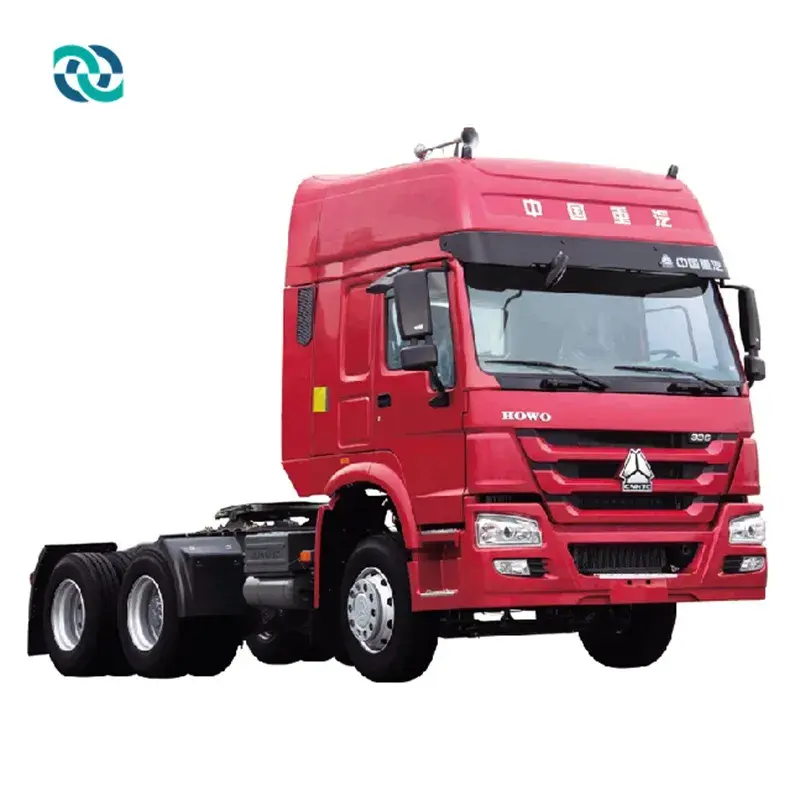

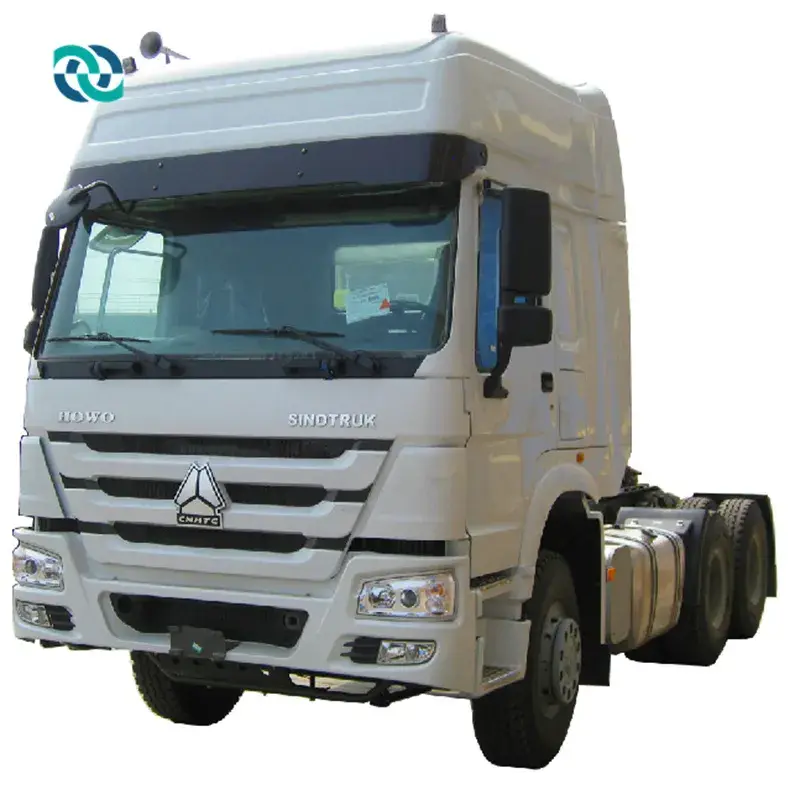

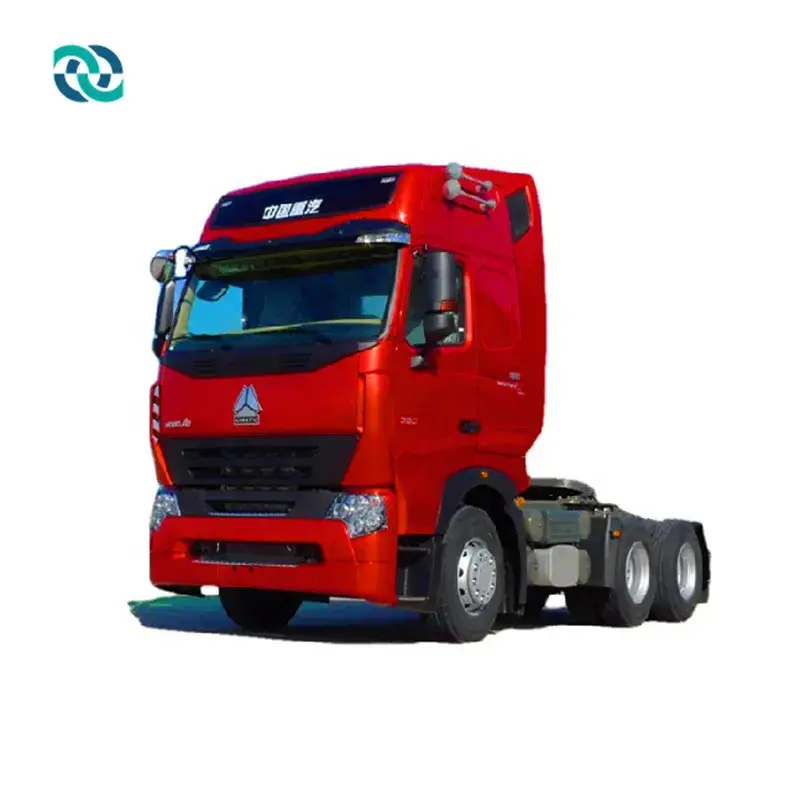

The cockpit design of a high-top tractor, which is tall and spacious at the top, usually provides the driver with more space for internal activities and rest. Its appearance is taller and more visible, giving it a sense of majesty. High-top tractors are commonly used for long-distance freight, logistics transport and long-distance cargo transport. Due to the spacious space in the car, the driver can spend a long time driving more comfortably, which is suitable for work scenarios that need to drive in the car for a long time.
The high-top tractor offers more cockpit space, allowing the driver to be more comfortable and spacious on long trips. The high top design gives the driver a wider view and can improve the field of view of the road, contributing to driving safety and easy operation.
Parameter:
VEHICLE SPECIFICATION | DESCRIPTION |
Truck Model | ZZ4257V324HB1R |
Type of Vehicle | |
Truck Brand | SINOTRUK—HOWOT7H |
Driving Position | Right hand Driving |
Fuel tanker capacity（L） | 600L+1000L OIL TANKE |
The Total Mass | 50,000kg |
Dead Weight | 8800 |
Max speed（km/h）(km/h) | 102 |
Color | Optional |
Chassis & Add Components | |
Frame Details | High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members. |
Dimension(Lx W xH)（mm） | 6985x2496x3450 |
Approaching angle/Departure angle（°） | 16/70 |
Overhang(front/rear) (mm) | 1500/725 |
Wheel base (mm) | 3225+1350 |
Engine | |
Model | WP12.400E201 |
Power | 400hp/318kw.2000r/min |
Emission | EURO II |
Displacement(L) | 11.896 |
Type | water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
Kind of Fuel | Diesel |
Fuel Consumption(L/100km) | 25L/100km |
Clutch & Gear Box System | |
Clutch | SINOTRUKΦ430mm diaphragm spring clutch |
Gear Box | HW19710 |
Axles | |
Front Axle Model | VGD71 axle. Capacity: 7000kg |
Rear Axle | MCY13BGS axle. Capacity:2X 13000kg |
Ratio of rear axle | 3.7 |
Electrical System | |
Battery | 2X12V/165Ah |
Alternator | 28V-1500kw |
Starter | 7.5Kw/24V |
Brake System | |
Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels |
Auxiliary brake | Engine exhaust brake |
Steering system | |
Model | ZF8118 |
Type | hydraulic steering with power assistance |
Wheels & Tyres | |
Type | 315/80R22.5 |
Material | Vacuum tire |
Quantity | 10+1 spare |
Fifth wheel | 50mm |
Fifth wheel Height | 1244mm full-load 1334mm empty-load |
Cabin | |
Type | T7H-G Standard cabin |
Double sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
Company Advantages
Located in Shandong Chenlu International Trade Co., Ltd. is a company that integrates R&D, production, processing, and sales. We are mainly engaged in the business of Dump semi trailer,Lowbed semi trailer,Flatbed trailer. Our company holds the value of 'high-quality service, high-tech innovation, high-speed development' and we seek excellence with hard work and dedication. Besides, our company constantly pursues progress and development, striving for realizing humanization, professionalism and branding of product service. Based on the requirements of modern enterprise management system, our company develops ourselves in a long term through forming an experienced talents team. With a focus on customers, CHENLU analyzes problems from the perspective of customers and provides comprehensive, professional and excellent solutions.
Our products are of excellent quality and favorable price, please feel free to contact us for quotation!
