Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.

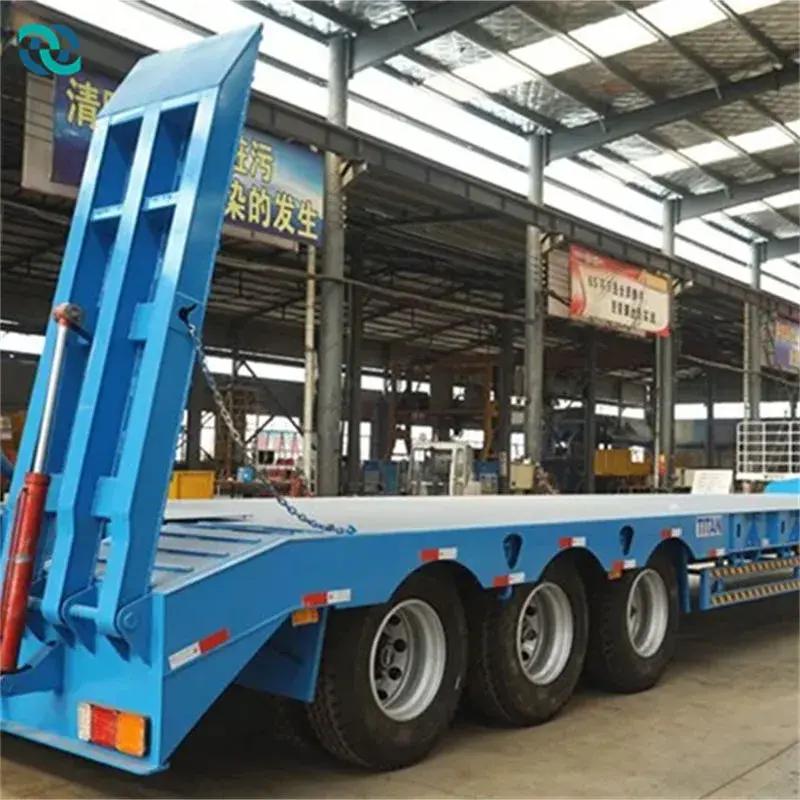

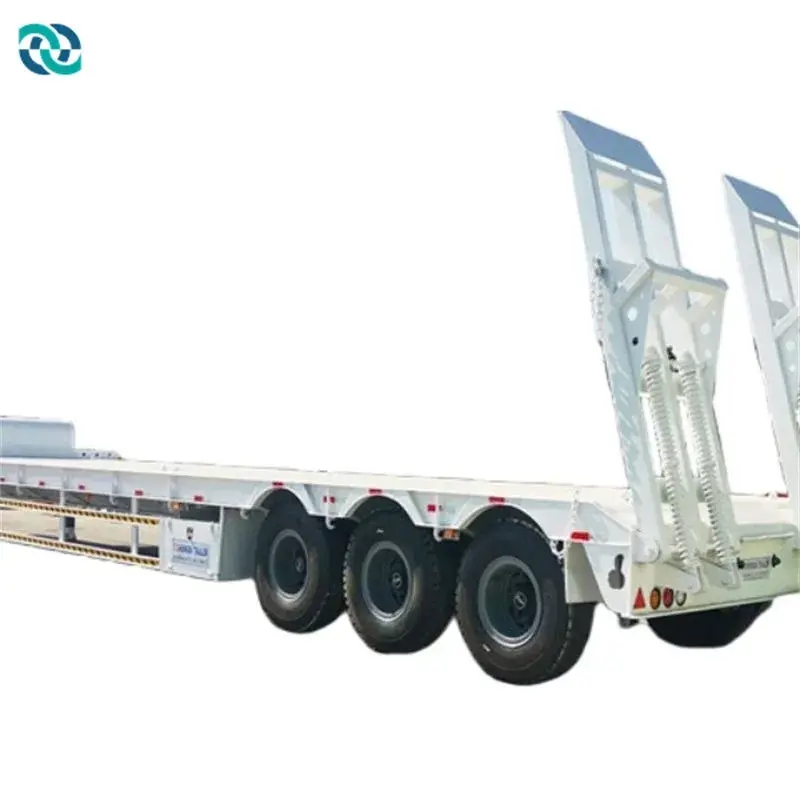

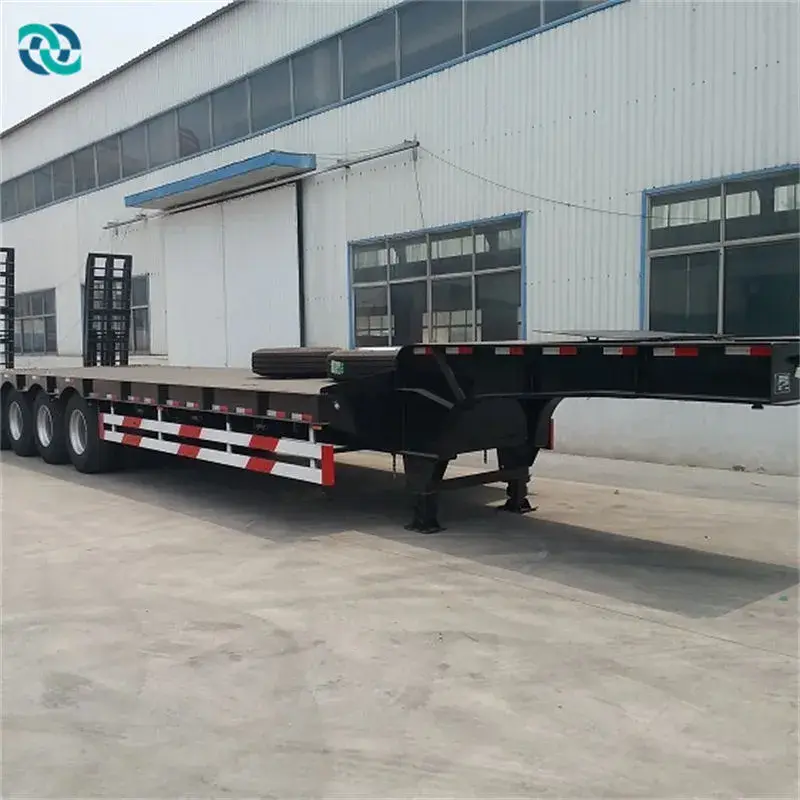

16 Wheeler Low Bed Trailer CHENLUTRAILER 3 Axle 50T Low Bed Trailermanufacturing
Product details of the 16 wheeler low bed trailer
Quick Detail
Chenlu Trailer 16 wheeler low bed trailer is designed using the optimum quality raw material as per industry guidelines. The product marks the best quality standards in the industry. CHENLU's 16 wheeler low bed trailer can be used in a variety of industries. Shandong Chenlu International Trade Co., Ltd. believes that our products can have a place in the world.
Product Description
CHENLU's 16 wheeler low bed trailer has the following advantages over other similar products.
Product Description：
Torsion resistan of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel , ensure low bed trailer driving stability and handle bed roads.
Heavy duty type ramp: manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine safely.
Stability when loading heavy duty marchine. The chenlu low bed trailer can equipped with extra legs on the rear of trailer. This ensures loading machines more safety.
Parameter:
Trailer Model | 3 Axle Low bed Semi Trailer |
Dimension(Lx W x H)（mm） | 13000*3000*3300 |
Curb Weight(KG) | 10500 |
Loading Weight( KG) | 65000 |
Total Wheight(KG) | 75500 |
Departure Angle | 16 |
Axle Brand | 16TON Axle |
Axle Number | 3 |
Wheelbase（mm） | 8580+1310+1310 |
Suspension system | Mechanical suspension |
Steel Spring | 10/10/10 |
Frame | The height of the beam is500mm,upper plate is 20mm,down plate is 20mm,middle plate is 12mm.according to the buyer’s requirement |
Platform plate | 4mm Diamond Plate |
Tire Type and quantity | 1100R20 12units |
Traction Pin | 50mm or 90mm |
Spare Wheel Bracket | 2 picecs |
Tool Box | 1 Unit |
Landing Leg | 28T load landing leg |
Brake system | Dual Line braking system ,none ABS. |
Brake air chamber | 6 air chambers |
Electrical system | 24V,7 Pole plug |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | None |
Painting | Color by customer’s requirement |
Packing | Polish with wax before shipping |
Delivery way | Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume. |
Company Advantages
Shandong Chenlu International Trade Co., Ltd., which is CHENLU, is mainly engaged in the production and sales of Dump semi trailer,Lowbed semi trailer,Flatbed trailer. CHENLU intends to be quality, excellent and efficient in the business. To guarantee quality, we greatly value sincere service and carry out standardized management and fine production. All these ensure that quality products and satisfactory services are in stable supply. With a professional leadership team, our company constantly introduces outstanding talents from all walks of life and integrates various favorable resources. All this makes efforts for the development, promotion and sales of our products. CHENLU is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
Contact: Leon
Tel: +86-15628801159
Whatsapp: +86-15628801159
E-mail:
Leon.manager@chenlutrailer.com
Address:
Room 1002, No.11, Jingsi Road, Shizhong District, Jinan City, Shandong Province, China
