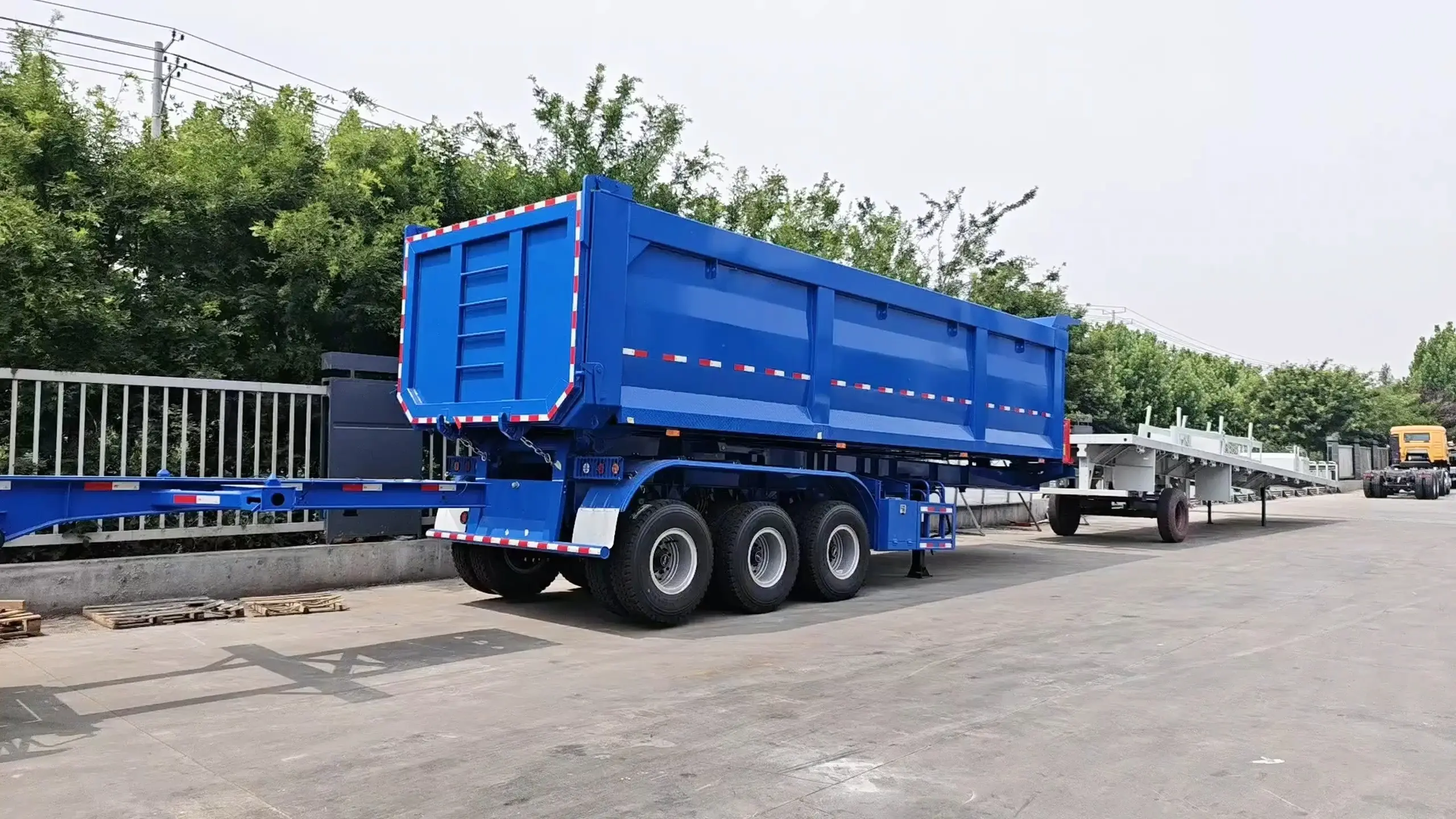

3 Axle Hydraulic End Dump Semi Trailer 1

3 Axle Hydraulic End Dump Semi Trailer 2

3 Axle Hydraulic End Dump Semi Trailer 3

3 Axle Hydraulic End Dump Semi Trailer 4

3 Axle Hydraulic End Dump Semi Trailer 5

3 Axle Hydraulic End Dump Semi Trailer

3 Axle Hydraulic End Dump Semi Trailer Is Made Of High Strength Steel And Equipped With Multiple Sub-Beams To Make The Bottom Of The Box Body Bear More Load. We Also Provide Two Axle, Three Axle And Four Axle Hydraulic Dump Trailers, Which Can Be Customized According To Customer Requirements.

Price:

15000 USD

Supply capacity:

300 pcs/Month

Product origin:

Shandong

Brand:

CHENLU

Warranty:

2 Years

Model NO.:

LJT9402ZL

Customization:

Support

Inquiry

Write a Review

Specifications
Overall dimension	10000 2500 3850mm	cargo box	9000x2300X1500mm
Loading Capacity	60T	Wheel Base(mm)	6880mm+1310mm+1310mm
Semi Trailer Chassis
Platform plate	3mm Checkered steel plate	The material of Main beam	The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm,middle plate is 10mm.Q345B
Thickness	bottom 10 side 8 mm	Axle brand	13TON Fuwa axles brand
Axle Number	3	Suspension system	Common Mechanical suspension
Landing gear	28T, double speed operation	Leaf Spring	10/10/10 leaf spring suspension
Lifting system	Hydraulic lifting suspension	Traction Pin	50MM or 90MM
Tire Type and quantity	11R20.00 12pieces	Tool box	1 set
Spare tire carrier		2 sets
Brake system	Dual Line braking system ,none ABS.	Brake air chamber	Four double and two single chamber
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc	Electrical system	24V,7 pin socket,One set 6-core standard Cable
Painting		Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request

3 Axle Hydraulic End Dump Semi Trailer

Product Description

3 Axle Hydraulic End Dump Semi Trailer offers unparalleled heavy duty strength, capable of carrying up to 60-80 tons. With its durable construction and reliable performance, this trailer is perfect for handling large loads with ease and efficiency.

PRODUCT STRENGTH

Products Advantages

The 3 axle 60 ton dump Semi trailer uses a double-plate main beam designed for heavy-duty semi-dump trailers. The main beam adopts a double-plate design, which has a stronger load-bearing capacity and is not easy to be damaged. The higher heavy-duty oil cylinder makes the lifting more stable and not easy to roll over.

3 Axle Hydraulic End Dump Semi Trailer 7

**Durability**

This rear dupm trailer frame is constructed from high-strength steel, ensuring stability and reliability during long-term use and heavy-duty transportation. The electric tarpaulin system features high-quality waterproof fabric and durable motor components, capable of withstanding harsh weather conditions and frequent use.

3 Axle Hydraulic End Dump Semi Trailer 8

**Stability**

3 axle Dump trailer offers excellent stability. The three-axle design and balanced suspension system ensure smooth operation under heavy loads and challenging road conditions, minimizing sway and rollover risks. The low loading bed lowers the center of gravity, enhancing stability during transportation and ensuring cargo safety

3 Axle Hydraulic End Dump Semi Trailer 9

**Versatility**

Tipper trailer is highly versatile. Its low loading bed facilitates easy loading and unloading of various cargos, while the electric tarpaulin can be quickly opened or closed. The three-axle design enhances stability and load capacity, making it suitable for diverse road conditions and transportation needs.

**Safety**

self dump semi trailer with an electric tarpaulin prioritizes safety. The electric tarpaulin prevents cargo from falling during transit, reducing road hazards. The low loading bed facilitates easier loading and unloading, minimizing operational risks， guaranteeing safe driving on complex road conditions.

WHY CHOOSE US?

Product Characteristics

The dump semi trailer features high load capacity and stability from its 3 axle design, convenient electric tarpaulin operation for cargo protection, a low loading bed for easy loading/unloading of heavy equipment, a durable high-strength frame, and a balanced suspension system for smooth driving, meeting all needs for heavy cargo transportation.

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

More stable loading and unloading

High loading capacity

High-strength frame

Capacity

This dump semi trailer features a rectangular cargo box that offers high space utilization, easy loading/unloading, and robust stability, making it efficient for transporting heavy cargo.

Efficiency

This rear dump trailer electric tarpaulin can be operated with a single button, quickly covering or uncovering the cargo to save time and labor. The low loading bed design, ensuring quick cargo handling and enhancing transportation efficiency.

Durability

This self dump trailer is built with high-strength steel, ensuring robust durability for long-term heavy-duty transportation. The electric tarpaulin system, made from high-quality materials, offers excellent waterproof and wear-resistant properties, significantly extends the service life and reduces maintenance costs.

FAQ

Does your company has your own factory?

Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous in Shan Dong,China.

Can you satisfy my special requirement?

Definitely!we support customize transportation solutions and service.

What's your minimum quantity?

one units.

How to trust us?

The good faith management is our philosophy,and you are welcome to visit our company at any time.

What's your payment term?

We accept both T/T and LC T/T:30% deposit by T/T,70% balance should be paid before shipment.
