Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.

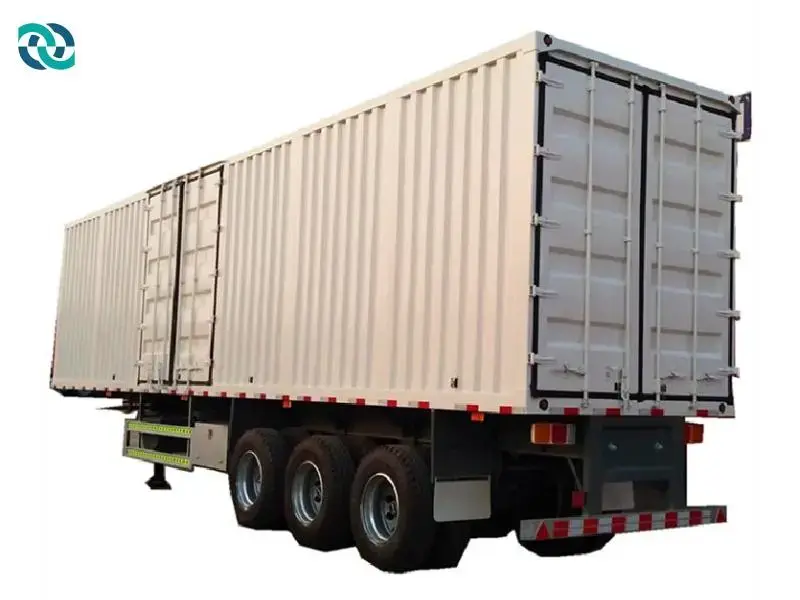

3 Axle Transport Semi Box Truck Trailer
Product Parameters:
The semi-box type cargo semi-trailer usually has good carrying capacity and stability, and can safely transport household appliances under various road conditions. The bottom structure and frame of the vehicle are designed to withstand greater weight and pressure, thus ensuring that no tilt or wobble occurs during transport.
In addition, the box and frame materials of the semi-box cargo semi-trailer are usually high strength and durable, and can withstand the test of repeated loading and transportation. The manufacturing process and quality control of this vehicle can also provide better reliability and safety, ensuring that no accidents or damage will occur during the transportation of household appliances.
Parameter:
CURTAIN SEMI TRAILER | |
Tare weight | 8000kg |
Payload | 50000 kg |
Overall length | 13000mm |
Overall width | 2500mm |
Overall height | 4000mm |
SPECIFICATION | |
Chassis | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, Welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm;bottom flange16mm,height:500mm |
Suspension | Mechanical suspension |
Leaf spring | Spring leaf 6 sets |
Floor | 3mm |
Tire | 12R22.5 12 pcs |
Wheel rim | 9.0 12 pcs |
Kingpin | 2’ bolt-in king pin |
Landing gear | JOST C200 two-speed, manual operating ,heavy duty landing gear 24t |
Cylinder | No |
Vehicular applications | Cargo transport |
Drawing | Including |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box 1 jack 2 extinguishers 1Tire bolt sleeve |
Spare wheel carrier | 2 |
Curtain Material | Painting according to client’s requirements. |
