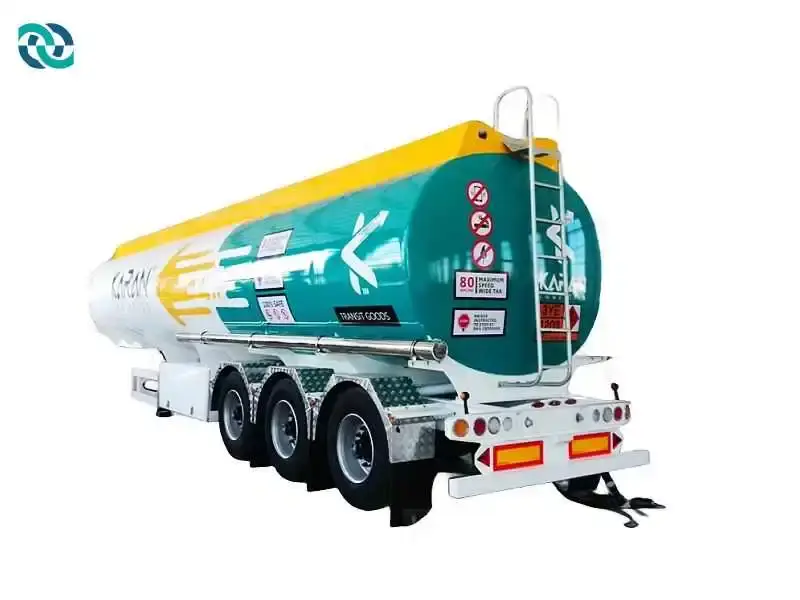

3 Axis Carbon Steel 50CBM Tank Truck Semi Trailer
Product Description：
Specifications | |
Product Name | 3 axle oil tanker semi trailer |
Over Dimensions | 11980*2500*3800mm |
Steel Structure | |
Material | Q235 Steel |
Frame | Main beam height is 500mm |
Frame Beam | Upper plate is 14mm,down plate is 16mm,middle plate is 8mm |
Landing Gear | Chinese brand 28 Tons |
subsea valve | 5 |
oil valve | 5 |
Tanker | |
Volume | 50 CBM 5+5+10+10+10+10 |
Body Thickness | 6mm |
Front/End Plate | 6mm |
Compartments | 7 compartments |
Specification | |
Axle Brand | 13TON Axle, |
Axle Number | Three |
Suspension System | Mechanical suspension |
Steel Spring | 10/10/10 leaf spring suspension |
Rim | 9.0-22.5 |
| Tire | |
| Tire Type and Quality | |
Number of Tire | 7 pieces |
Spare Wheel Bracket | 1 pieces |
Brake | |
Brake System | Dual line braking system |
Brake Chamber | Four Double and two single chamber, optional WABCO |
Electrical System | |
Cable | One set 6-core standard Cable. |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Light | Tail lamp with turn signal,brake light & reflector, side lamp etc. |
Miscellaneous | |
Side Guard | With |
Painting&Marking | According to customers’ requirement |
Weight | |
Tare Weight | 9000kg |
Axle Weight Load | 13T |
Specification | |
Axle number | 3 Axle |
Axle Brand | Fuwa or BPW |
Suspension | Common mechanical or Air suspension |
King Pin | 2'' or 3.5'' traction pin |
Dimensions | 11980*2500*3800mm |
Wheel Rim | 9.0-22.5 steel wheel rim |
Steel Spring | 10 pieces per axle |
Tank body & end plate | Q235/5mm steel & 6mm steel sheet |
Manhole cover | 500mm manhole cover. 2 sets with 2 breather valve |
Discharge valve & Pipe | 4'' disc valve & 4'' seamless steel tube |
Bottom valve | 1-2 sets of aluminum API pneumatic bottom valve |
Landing Gear | 28T Manual operating,Heavy duty landing gear |
Accessories | 1 Set standard tool box |
Light | Tail lamp with turn singnal,brake light & reflector,side lamp etc. |
Painting | 1 coat of anticorrosive prime,twice coats of final paint |
Tire | |
Tire spe. | 12R22.5 |
Number of Tire | 12 pieces |
Spare Tire Carries | 2pieces |
Frame | |
Main beam | Q345 Steel The height of the beam is 500mm Down plate is 16mm;middle plate is 8mm |
Air/Elec. Connector | ISO standard air connector,24V 7 pin plug socket |
Color | Upon request |
