Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.
Cost-Effective Semi Truck Supplier
Company Advantages
· semi truck is pretty and colorful.
· Many customers have given us the positive feedback of the product regarding its durability, overall performance, economic benefits.
· The product has a good market application perspective and good economic and social benefits.
Product Description：

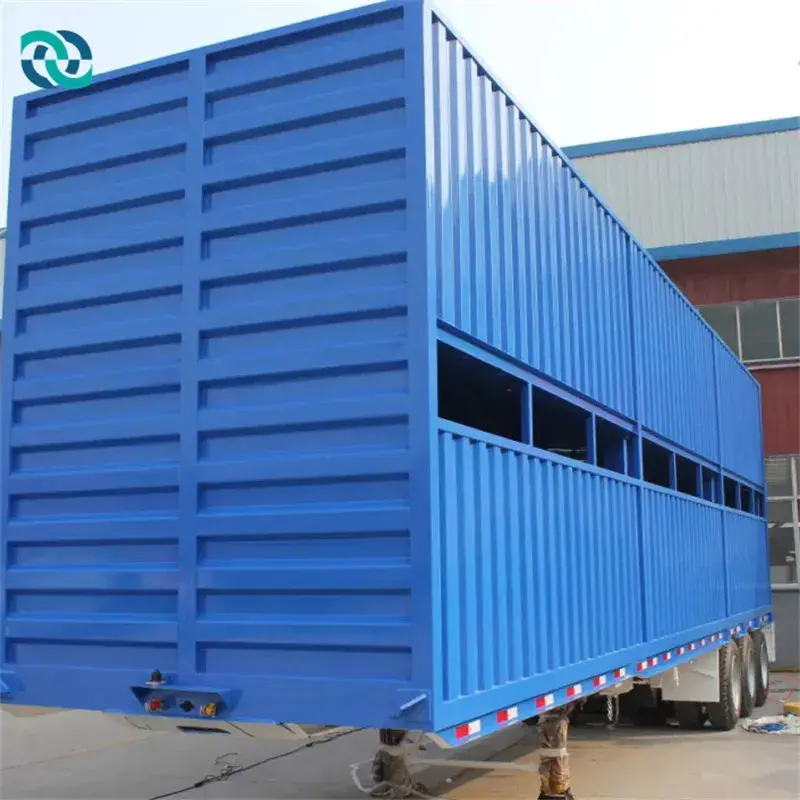

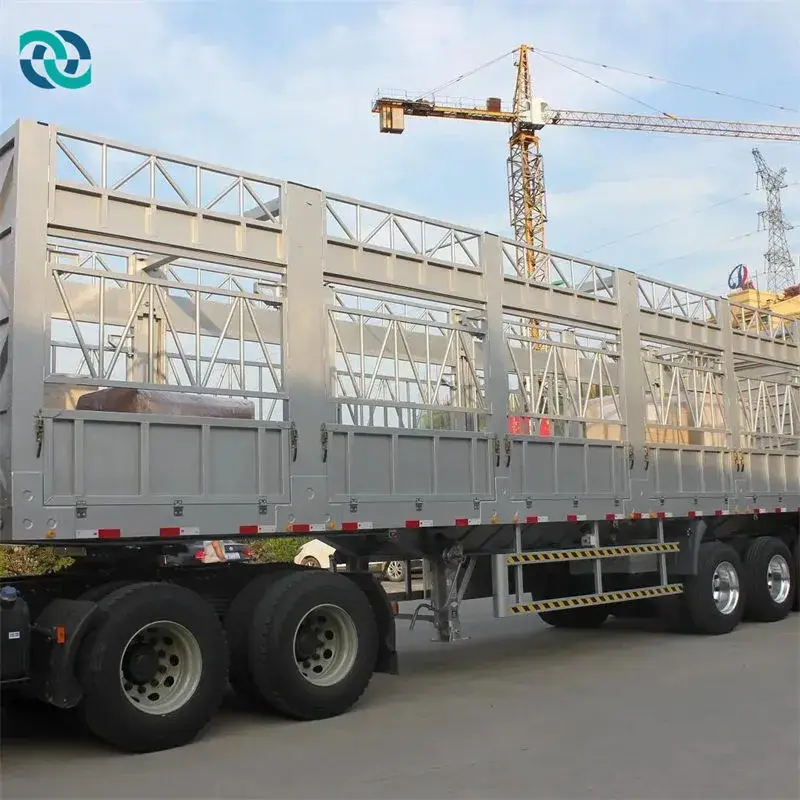

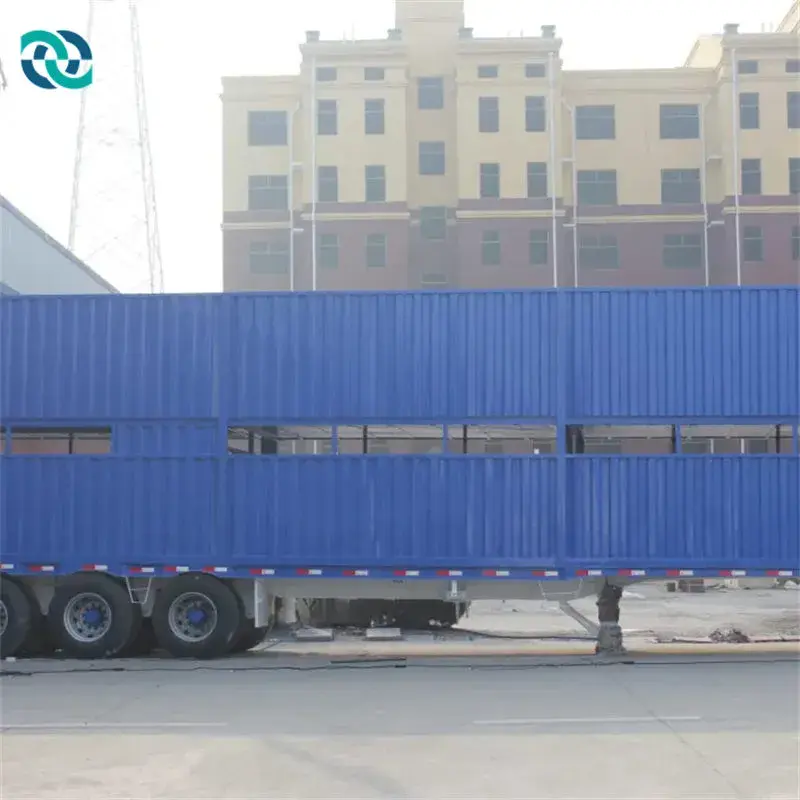

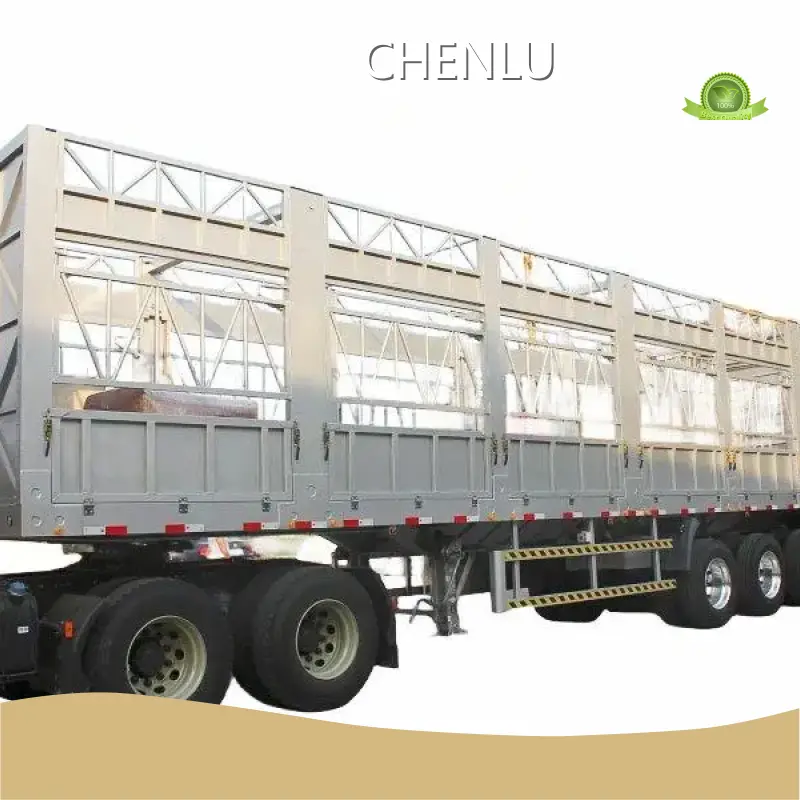

Livestock transport semi-trailer is a special means of transport for the transport of live animals (such as cattle, sheep, pigs, etc.). It usually consists of a tractor and a semi-trailer, which is equipped with specialized livestock cages so that live animals can be transported comfortably in them.
The purpose of livestock transport semi-trailer is very clear, that is, to provide professional protection for the transport of live animals. During use, it can safely transport animals from places such as farms or markets to destinations such as slaughterhouses, farmers markets, etc. At the same time, due to the special design of the semi-trailer, the ventilation and health condition of the animals during transportation can be guaranteed, with non-slip floors and safety fixtures to ensure that the animals remain stable during transportation, reducing injuries and unnecessary stress.
It can improve transportation efficiency and shorten transportation time; It can reduce manpower input and realize fast loading and unloading; It can reduce pollution and odor during transportation.
Parameter:
SIDE TIPPING SEMI TRAILER | |
overall size | overall size：12000mm L * 2550MM W , height: 3250MMinner tipper box inside size : 117000mm L* 2350mm W*1500mm H |
wheelbase | 7280+1310+1310 |
weight | 9500 kg |
specification | |
chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel , welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Middle Flange 10mm; Bottom Flange 18mm,width 140mm |
axle | 3 axles16T |
Tyre | TRIANGLE brand 12R22.5 |
rim | ZHENGXIN 9.0-22.5 |
leaf spring | 90width*10pieces*16thickness |
suspention | Heavy-duty suspension |
cargo body | high tensile steel ,Compartments body side plate 4mm and bottom plate 5mm, body high 1500mm opening 5 doors in both side model |
relay valve | WABCO |
landing gear | 28 tons |
kingpin | 50# |
Cylinder | 5 lifting cylinders 130# 1 opening cylinder 150# |
spare tire carrier | Chain hoist lift |
tool box | 1.0 meter with Warded lock |
Rope hook | Interval is 1000mm |
Tight rope device | Each side 4 |
brake chamber | stored chamber T30/30/30 6PCS, Energy storage 40L ,We need shake hands brake chamber and one each in red, yellow, joints, and interfaces with tire inflation hose 20 m |
Electrical system | 24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors |
Paint (short and blasting ) | painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns dft),whole trailer wax .Two dozen sand process |
Company Features
· Shandong Chenlu International Trade Co., Ltd. is famous around the world for its high quality of semi truck.
· The technological frontier of Chenlu Trailer is advancing to improve the quality of semi truck. By absorbing newly high-end technology, Chenlu Trailer has been making great progress in its technical growth. Chenlu Trailer has launched key technologies to manufacture semi truck.
· We carry out sustainable activities in our business operation. We believe the environmental impact of our actions will not only appeal to socially conscious consumers and employees but can also make a real difference in the world.
Product Details
CHENLU's high-quality semi truck is produced according to the national standards. The specific details are as follows.
Application of the Product
The semi truck developed by CHENLU is widely used in various fields.
Since the establishment, CHENLU has always been focusing on the R&D and production of Dump semi trailer,Lowbed semi trailer,Flatbed trailer. With great production capability, we can provide customers with personalized solutions according to their needs.
