Chenlu Trailer Focus On The R D And Manufacturing Of Semi Trailers And Truck Since 2008.
4 Axle 80 Ton Semi Lowboy Trailer
| CHENLU 4 Axle 80 Ton Semi Lowboy Trailer | |||||
| Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |
| Dimension Made by Customer Machine Size, Standard Length is 13500mm (contact supplier for more) |
1 | 20 | 4 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
|
| 2 | 40 | 8 | |||
| 3 | 60 | 12 | |||
| 4 | 80 | 16 | |||
| 5 | 100 | 20 | |||
| Wheel Base (mm) | 1310 | ||||
| Axle | 13/16/18 T | ||||
| Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded | ||||
| Brake System | Dual line braking system with automatic braking system/chambers | ||||
| Kingpin | 2' or 3.5' Interchangeable | ||||
| Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||
| Platform | 4-6 mm diamond steel plate | ||||
| Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
| Electrical System | 24V, 7core socket, lights according to European standards. | ||||
| Mainbeam Size |
Upper plate | 14mm | |||
| Lower plate | 16mm | ||||
| Mid Web | 8 mm | ||||
| Height | 500-520mm | ||||
| Pin Height | According to the height of the tractor saddle. | ||||
4 Axle 80 Ton Semi Lowboy Trailer
Product Description

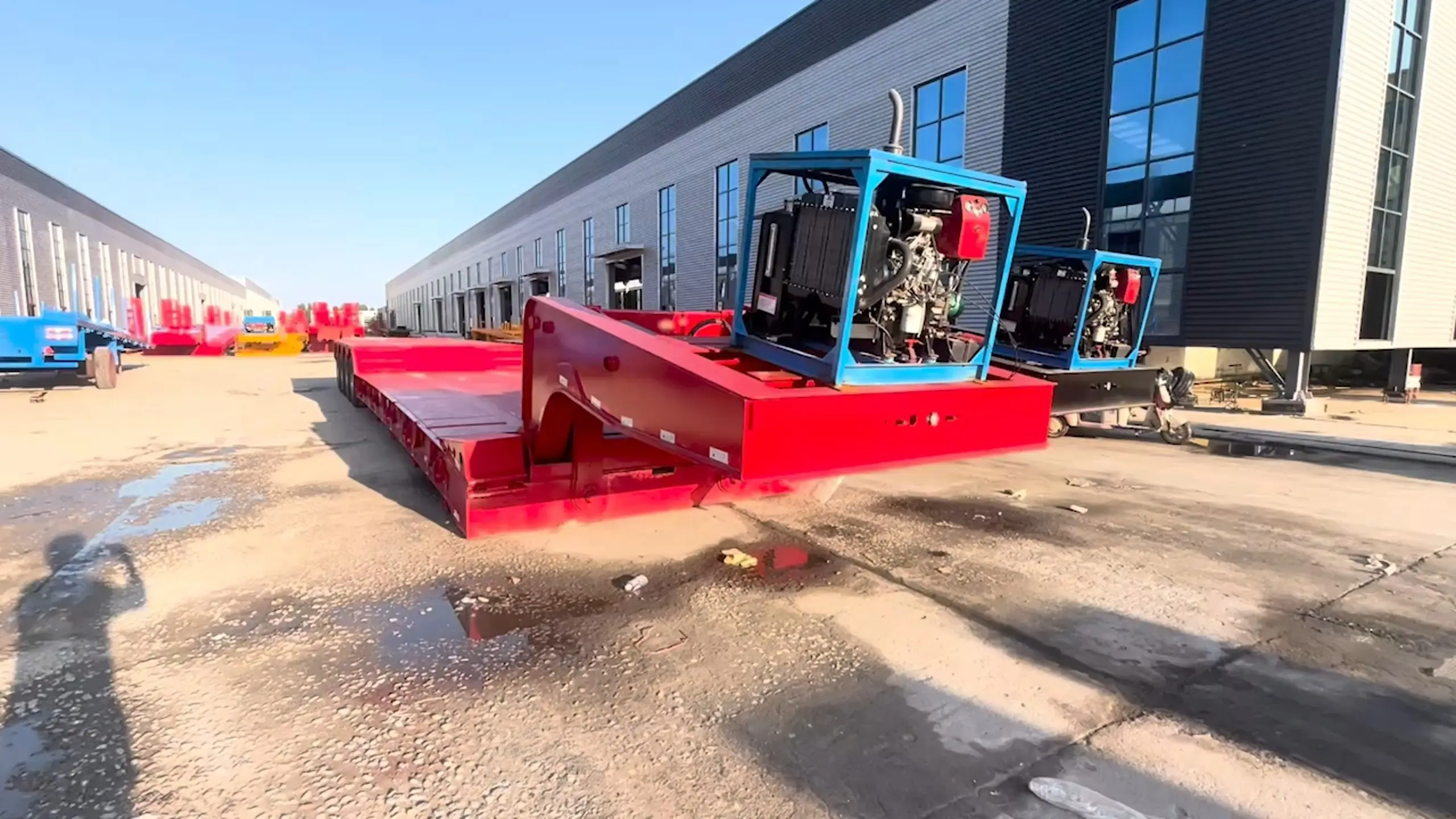

4 Axle 80 Ton Semi Lowboy Trailer Designed for a 80 ton load capacity, it features a 3 axle structure and 12R22.5 tires. The trailer is equipped with a diesel engine and hydraulic system, enabling efficient gooseneck detachment and loading and unloading operations.
Products Advantages
3 Axle 60 Ton Removable Gooseneck Trailer has a solid structure and strong load-bearing capacity. The detachable front gooseneck design facilitates the equipment to be moved up and down. It is equipped with a hydraulic system that can lower itself to form a ramp, greatly improving loading and unloading efficiency. It has high stability and durability.
Product Characteristics
This low bed gooseneck trailer adopts a detachable gooseneck and hydraulic system design, which greatly improves loading and unloading efficiency; the vehicle structure is sturdy and suitable for transporting a variety of heavy equipment; it is equipped with mechanical suspension, which makes driving more stable and has excellent durability and applicability in multiple scenarios.
